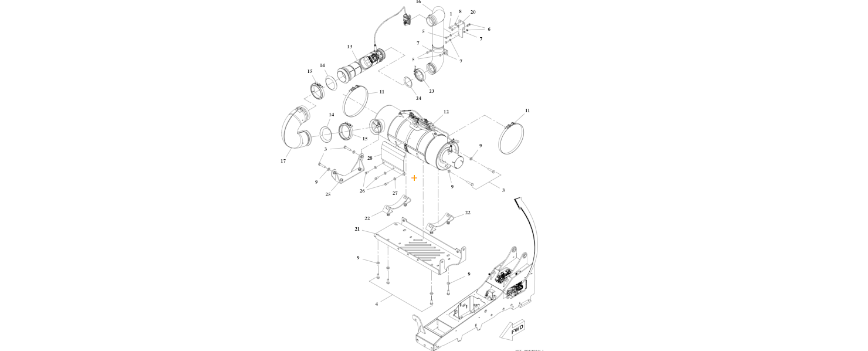

1001160844 Aftertreatment Installation

Welcome to our JLG Installation Part Database. Most of the installation items you will find in your JLG parts manuals are sold at the component level. The goal of this database is to provide the components in an easy-to-locate, click-to-purchase format. Whether you are just needing an idea on the cost of the installation item, or you need these items shipped to you right away, we have you covered.

Below, you will find the products that make up the 1001160844 Aftertreatment Installation, machines, and quantities required that are included in this installation item will be in the table below "quantities required".

Components

Quantities Required

Component Item	Component Description	Quantity	U/M
4812000	WSHR FLT 10MM 10.5 21 2	2	EA
0701219	HHCS, M12X55 8.8 DIN 931	4	EA
1001183811	PIPE,DRT EXHAUST FLEX ASM	1	EA
0641607	SCR CAP HH 5,.375-16X.875	3	EA
1001166976	BRACKET,SRC MOUNT ASM	2	EA
4812100	WASHER, M12	10	EA
0641608	SCR CAP HH 5,.375-16X1.000	2	EA
1001166693	BRACKET,NOX MODULE	1	EA
1001169057	BRACKET,SCR FRAME MOUNT WLDMT	1	EA
0760810	HHCS, M8-20 8.8 A4C ISO 4017	4	EA
1001174327	SHIELD,SCR FROM OIL	1	EA
1001160782	MUFFLER,SCR SIEO CUMMINS	1	EA
1001159932	STRAP,EAT CLAMP	2	EA
1001164404	MUFFLER,DECOMPOSITION REACTOR	1	EA
1001165609	PIPE,EXHAUST DRT TO SCR	1	EA
0711214	BOLT,PT METRIC GR10.9(CODED)	6	EA
1001167167	CLAMP,V-BAND 3"	1	EA
4891600	WSH HARD .38 .406 .813 .138	3	EA
4811900	WASHER , M8	6	EA
3290801	NUT HEX,8MM-1.25 CLASS 8	2	EA
1001241482	CLAMP,V BAND 4" SPHERICAL	2	EA
1001167168	SEAL,GASKET CIRCULAR	1	EA
1001241318	SEAL,GASKET CIRCULAR 4"	2	EA
1001166935	BRACKET,SCR SUPPORT ASM	1	EA
1001189149	WF,SKYTRAK T4F APPLY FIXTURE	1	EA
