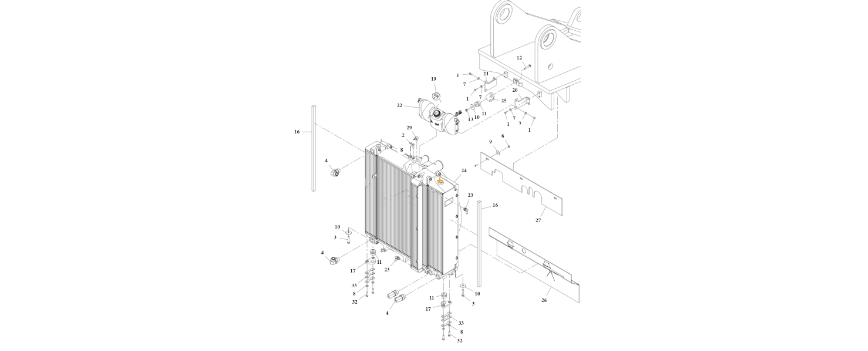

1001165670 Cooling Installation
Below, you will find the products that make up the 1001165670 Cooling Installation, machines, and quantities required that are included in this installation item will be in the table below "quantities required".
Components
Quantities Required
| Component Item |
Component Description |
Quantity |
U/M |
| 1001181584 | BRACKET,TANK, LH | 1 | EA |
| 8278020 | MOUNT RUBBER | 3 | EA |
| 8307109 | WASHER PLAIN-NARROW-.250 X-.28 | 3 | EA |
| 1001182255L | TANK,DEAERATION | 1 | EA |
| 2131212 | ADPT,90 S ORFS/ORB 12-12 FG | 4 | EA |
| 1001169059 | MOUNT,COOLER BRACKET | 1 | EA |
| 4740362 | WASHER, .047 X .25 X 1.25 | 3 | EA |
| 4711500 | WSHR FLT .31 .34 .69 .065 | 6 | EA |
| 0641405 | SCR CAP HH 5,.250-20X.625 | 8 | EA |
| 1001181585 | BRACKET,TANK, RH | 1 | EA |
| 1001244616 | PANEL,AIR DAM UPPER | 1 | EA |
| 0641508 | SCR CAP HH 5,.312-18X1.000 | 2 | EA |
| 1001178582 | SEAL,FOAM GASKET | 2 | EA |
| 1001168478 | RADIATOR,COOLING PACKAGE | 1 | EA |
| 1001128341 | CAP,DEAERATION TANK | 1 | EA |
| 1001170117 | PANEL,AIR DAM | 1 | EA |
| 0641509 | SCR CAP HH 5,.312-18X1.125 | 4 | EA |
| 1001178776 | FTG-PIPE,HOSE BARB 90 DEG 6-6 | 2 | EA |
| 4711400 | WSHR FLT .25 .28 .63 .065 | 8 | EA |
| 1001120869 | BRACKET,COOLER MOUNT | 2 | EA |
| 0641614 | SCR CAP HH 5,.375-16X1.750 | 2 | EA |
| 8305008 | NUT-HEX-.375-16-2-ZINC PLATED | 1 | EA |
| 3311401 | NUT HEX,.250-20 REG HT | 3 | EA |
| 0641414 | SCR CAP HH 5,.250-20X1.750 | 3 | EA |
| 1001179845 | SHIM,1.5 MM X 82MM | 6 | EA |
| 1001134488 | FTG-PIPE(CODED),BARBED | 1 | EA |
| 8310281 | BOLT-CARRIAGE-.375-16NC-2.25-G | 1 | EA |
| 7057141 | WASHER REBOUND | 3 | EA |
Single Level Where Used
Structured Inquiry
| Component Item |
Component Description |
| 1001166034 | INSTALL,ENGINE LRC |
| 1001165489 | INSTALL,ENGINE TIER 4F |
