Welcome to our JLG Installation Part Database. Most of the installation items you will find in your JLG parts manuals are sold at the component level. The goal of this database is to provide the components in an easy-to-locate, click-to-purchase format. Whether you are just needing an idea on the cost of the installation item, or you need these items shipped to you right away, we have you covered.

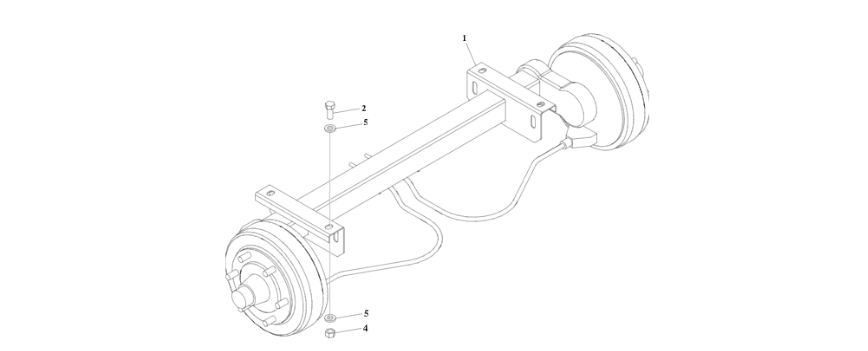

0273656 Axle Installation with Mechanical Brakes
Below, you will find the products that make up the 0273656 Axle Installation with Mechanical Brakes under "Components". The machines and quantities required for this installation item will be located in the tables below "quantities required".
Components
Quantities Required
| Component Item |
Component Description |
Quantity |
U/M |
| 3312005 | NUT HEX,.625-11 LOCK | 4 | EA |
| 0280187 |
AXLE,CE 5200 LB CAP |
1 | EA |
| 4892000 | WSH HARD .62 .656 1.250 .187 | 8 | EA |
| 0642012 | SCR CAP HH 5,.625-11X1.500 | 4 | EA |
Single Level Where Used
Structured Inquiry
| Component Item |
Component Description |
| A3070731 | T500J |
| A3070627 | T500J |
| A3070626 | T500J |
| 0000307 | JLG MODEL T500J LIFT |
| E03070000017 | T500J |
| E03070000019 | T500J |
