Welcome to our JLG Installation Part Database. Most of the installation items you will find in your JLG parts manuals are sold at the component level. The goal of this database is to provide the components in an easy-to-locate, click-to-purchase format. Whether you are just needing an idea on the cost of the installation item, or you need these items shipped to you right away, we have you covered.

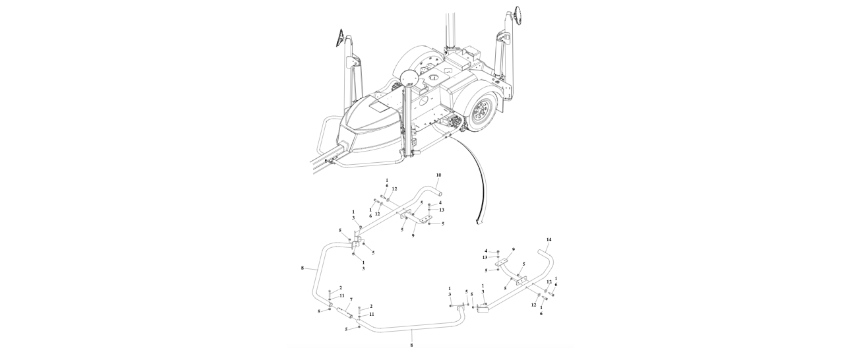

0273680 JLG T350 Side Guard Installation
Below, you will find the products that make up the 0273680 JLG T350 Side Guard Installation under "Components". The machines and quantities required for this installation item will be located in the tables below "quantities required".
Components
Quantities Required
Below you will find all of the part numbers and quantities required for the installation item.
Component Item |
Component Description |
Quantity |
U/M |
4341009 |
SUPT/MNT,TUBE |
1 |
EA |
4569400 |
TUBE,SIDEGUARD WELDMENT |
1 |
EA |
3311608 |
NUT HEX,.375-16 SER FLG |
18 |
EA |
4569194 |
TUBE,SIDE GUARD WELDMENT |
2 |
EA |
0811607 |
SCREW,HEX FLANGE GR8 3/8X.88LG |
8 |
EA |
0811610 |
SCREW,HEX FLANGE GR8 3/8X1.12L |
4 |
EA |
4891600 |
WSH HARD .38 .406 .813 .138 |
4 |
EA |
4569188 |
TUBE,DEFLECTOR WELDMENT |
2 |
EA |
4751700 |
WSHR FLT .44 .50 1.25 .083 |
4 |
EA |
3900270 |
SCREW,SHOULDER BOLT |
4 |
EA |
4569398 |
TUBE,SIDEGUARD WELDMENT |
1 |
EA |
4711600 |
WSHR FLT .38 .40 .81 .065 |
2 |
EA |
0641622 |
SCR CAP HH 5,.375-16X2.750 |
2 |
EA |
Single Level Where Used
Structured Inquiry
Below you will find all of the components that contain this item.
| Component Item |
Component Description |
| A3060377 | T350 |
| A3060381 | T350 |
| A3060330 | T350 |
| E03060000035 | T350 |
| E03060000065 | T350 |
| A3060279 | T350 |
| E03060000081 | T350 |
| A3060379 | T350 |
| A3060378 | T350 |
| E03060000079 | T350 |
| E03060000014 | T350 |
| A3060553 | T350 |
| A3060376 | T350 |
| A3060327 | T350 |
| E03060000072 | T350 |
| A3060380 | T350 |
| E03060000064 | T350 |
| 0000306 | JLG MODEL T350 LIFT |
| A3060277 | T350 |
| E03060000015 | T350 |
| A3060873 | T350 |
| E03060000078 | T350 |
| E03060000080 | T350 |
