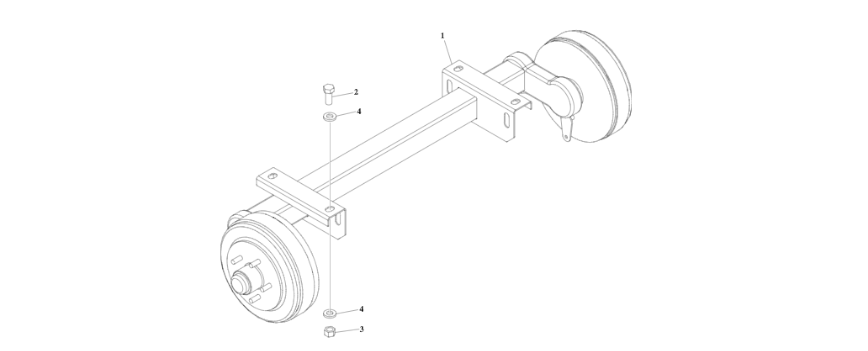

0273699 Axle Installation with Electric Brakes
Below, you will find the products that make up the 0273699 Axle Installation with Electric Brakes under "Components". The machines and quantities required for this installation item will be located in the tables below "quantities required".
Components
Quantities Required
| Component Item |
Component Description |
Quantity |
U/M |
| 3312005 | NUT HEX,.625-11 LOCK | 4 | EA |
| 0642012 | SCR CAP HH 5,.625-11X1.500 | 4 | EA |
| 0280158 | AXLE,TORFLEX ELECTRIC | 1 | EA |
| 4892000 | WSH HARD .62 .656 1.250 .187 | 8 | EA |
Single Level Where Used
Structured Inquiry
| Component Item |
Component Description |
| E03060000003 | T350 |
| E03060000010 | T350 |
| E03060000023 | T350 |
| 0000306 | JLG MODEL T350 LIFT |
| E03060000024 | T350 |
| E03060000038 | T350 |
| E03060000036 | T350 |
