Welcome to our JLG Installation Part Database. Most of the installation items you will find in your JLG parts manuals are sold at the component level. The goal of this database is to provide the components in an easy-to-locate, click-to-purchase format. Whether you are just needing an idea on the cost of the installation item, or you need these items shipped to you right away, we have you covered.

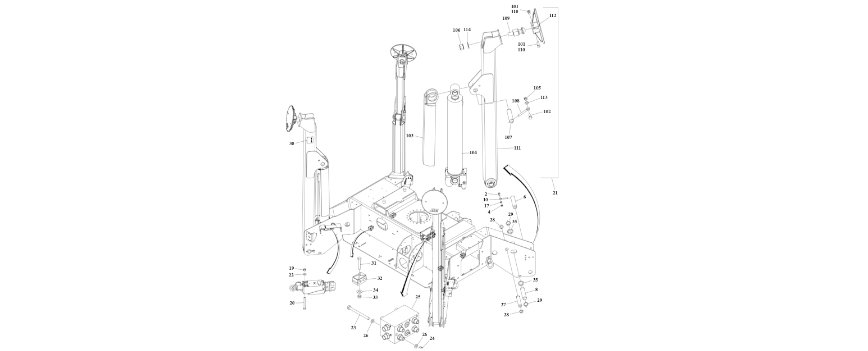

0273715 Outrigger Installation (T500J)

Below, you will find the products that make up the 274375 Outrigger Installation (T500J) under "Components". The machines and quantities required for this installation item will be located in the tables below "quantities required".

Components

Quantities Required

Below you will find all of the part numbers and quantities required for the installation item.

Component Item
Component Description
Quantity
U/M
4031512 SCREW,SOCKET HD CAP METRIC(COD 8 EA
3423186 PIN,1.25" OD NICKEL PLATED 4 EA
1320159 CLAMP, HOSE 4 EA
4751500 WSHR FLT .31 .38 .88 .083 4 EA
4210025 STABILIZER,T500 ANSI OUTRIGGER 4 EA
3291007 NUT, M-10 LOCKING 4 EA
0700827 SCR CAP HH 8.8,8-1.25X100MM 2 EA
3423147 PIN,1.40 OD X 7.14 LG 4 EA
0641516 SCR CAP HH 5,.312-18X2.000 4 EA
4711400 WSHR FLT .25 .28 .63 .065 4 EA
4641380 VALVE,HYDRAULIC MANIFOLD 1 EA
3290405 NUT, HEX 4 X .7 8 EA
4811400 WASHER, 4MM 8 EA
0701014 SCR CAP HH 8.8,10-1.50X30MM 4 EA
1706264 DECAL, PAD LOAD 4 EA
3311505 NUT HEX,.312-18 LOCK 4 EA
4812000 WSHR FLT 10MM 10.5 21 2 4 EA
3290805 NUT,SELF LOCKING M8 2 EA
3421986 PIN, 1.50 X 7.25 1018 4 EA
3760237 RING, RETAINER 8 EA
3841143 ROD, KEEPER SHAFT 4 EA
4740333 WASHER 2.25 X 1.56 X .065 8 EA
3760133 RING, RETAINER 8 EA

Single Level Where Used

Structured Inquiry

Below you will find all of the components that contain this item.

Component Item
Component Description
E03070000025 T500J
A3071052 T500J
A3070907 T500J
A3070851 T500J
A3070742 T500J
A3070619 T500J
A3070598 T500J
A3070445 T500J
E03070000058 T500J
0000307 JLG MODEL T500J LIFT
A3071094 T500J
A3071020 T500J
A3071033 T500J
A3071044 T500J
A3070547 T500J
A3070743 T500J
A3070659 T500J
A3070979 T500J
E03070000011 T500J
A3071063 T500J
A3071040 T500J
A3071101 T500J
A3070903 T500J
AE390027 T500J
A3070815 T500J
A3070771 T500J
E03070000035 T500J
A3070551 T500J
A3070435 T500J
E03070000012 T500J
AE390006 ET500J
A3070819 T500J
A3070688 T500J
A3070492 T500J
A3070900 T500J
A3070757 T500J
A3070690 T500J
A3071106 T500J
A3070629 T500J
A3070573 T500J
A3070772 T500J
E03070000023 T500J
A3071032 T500J
A3070920 T500J
A3071085 T500J
A3071027 T500J
A3070951 T500J
A3070869 T500J
A3070786 T500J
A3070700 T500J
A3070581 T500J
A3070912 T500J
A3070854 T500J
A3070601 T500J
A3070597 T500J
A3070499 T500J
A3070606 T500J
A3070489 T500J
A3071097 T500J
A3071037 T500J
A3070914 T500J
A3070779 T500J
A3071080 T500J
A3070731 T500J
AE390011 T500J
A3070577 T500J
A3070792 T500J
A3070407 T500J
A3070467 T500J
A3070828 T500J
A3070735 T500J
A3071078 T500J
A3070932 T500J
A3070864 T500J
A3070610 T500J
A3070534 T500J
A3070631 T500J
A3070578 T500J
A3070442 T500J
A3070519 T500J
A3070457 T500J
A3071017 T500J
A3070682 T500J
A3070671 T500J
A3070616 T500J
E03070000096 T500J
A3070479 T500J
AE390016 T500J
AE390026 T500J
A3070636 T500J
A3070594 T500J
AE390010 ET500J
E03070000016 T500J
A3071035 T500J
E03070000021 T500J
A3070701 T500J
A3070553 T500J
E03070000101 T500J
AE390036 ET500J
E03070000062 T500J
A3070850 T500J
A3070708 T500J
E03070000033 T500J
A3070952 T500J
A3070480 T500J
E03070000053 T500J
A3070988 T500J
A3070482 T500J
A3070961 T500J
A3070625 T500J
A3070944 T500J
A3070477 T500J
A3070866 T500J
A3070750 T500J
A3070554 T500J
A3070456 T500J
A3070655 T500J
E03070000034 T500J
AE390007 ET500J
A3070889 T500J
A3070946 T500J
A3071082 T500J
A3070808 T500J
A3070607 T500J
A3070799 T500J
A3070614 T500J
A3071105 T500J
E03070000072 T500J
A3071015 T500J
A3070747 T500J
A3070729 T500J
A3071013 T500J
A3070839 T500J
A3070766 T500J
A3070470 T500J
A3070472 T500J
A3071004 T500J
A3071010 T500J
A3070922 T500J
A3070981 T500J
A3070849 T500J
E03070000091 T500J
A3071070 T500J
A3070698 T500J
A3070402 T500J
E03070000093 T500J
A3071009 T500J
A3070785 T500J
A3070584 T500J
A3070532 T500J
A3070784 T500J
A3070650 T500J
A3070529 T500J
A3070975 T500J
A3070894 T500J
A3070628 T500J
E03070000054 T500J
A3070795 T500J
A3070615 T500J
A3070473 T500J
A3070512 T500J
E03070000079 T500J
A3070991 T500J
A3070640 T500J
AE390015 T500J
E03070000032 T500J
A3071008 T500J
A3070823 T500J
A3070634 T500J
A3070638 T500J
A3070567 T500J
A3070441 T500J
A3070953 T500J
A3070936 T500J
A3070541 T500J
AE390040 ET500J
A3070739 T500J
A3070645 T500J
A3070561 T500J
A3070873 T500J
A3070878 T500J
A3070859 T500J
A3070555 T500J
A3070413 T500J
E03070000086 T500J
E03070000073 T500J
E03070000030 T500J
A3070921 T500J
A3070901 T500J
A3070737 T500J
E03070000009 T500J
A3070632 T500J
A3070624 T500J
A3070438 T500J
A3071091 T500J
A3070564 T500J
A3071056 T500J
A3071065 T500J
A3070933 T500J
A3070656 T500J
A3070833 T500J
A3070466 T500J
A3070517 T500J
E03070000049 T500J
A3070635 T500J
A3070443 T500J
A3071079 T500J
A3070522 T500J
AE390005 ET500J
A3070481 T500J
A3070420 T500J
A3071075 T500J
A3070842 T500J
A3070651 T500J
A3070418 T500J
AE390008 T500J
A3070677 T500J
A3070670 T500J
A3070801 T500J
A3070626 T500J
A3070580 T500J
E03070000027 T500J
A3070733 T500J
E03070000050 T500J
A3070813 T500J
A3070790 T500J
A3070509 T500J
E03070000089 T500J
A3070559 T500J
A3070752 T500J
A3070707 T500J
A3070446 T500J
A3071021 T500J
A3070899 T500J
A3070579 T500J
A3070643 T500J
E03070000029 T500J
A3070451 T500J
A3070570 T500J
A3071086 T500J
A3071058 T500J
A3070717 T500J
A3071057 T500J
A3071061 T500J
A3071100 T500J
A3071018 T500J
A3070415 T500J
A3070884 T500J
A3070562 T500J
A3070463 T500J
A3070793 T500J
A3071001 T500J
A3070897 T500J
AE390022 T500J
A3070583 T500J
A3070767 T500J
A3070762 T500J
A3070642 T500J
A3070525 T500J
A3070715 T500J
A3070713 T500J
A3070572 T500J
A3070568 T500J
AE390028 T500J
A3070825 T500J
A3070498 T500J
A3071077 T500J
A3070989 T500J
A3070686 T500J
A3070520 T500J
E03070000092 T500J
A3071089 T500J
AE390002 T500J
A3070919 T500J
AE390033 T500J
E03070000088 T500J
A3070591 T500J
A3070500 T500J
A3070977 T500J
A3070816 T500J
A3070483 T500J
A3070867 T500J
A3070853 T500J
A3070838 T500J
A3070749 T500J
A3070702 T500J
A3070563 T500J
A3070400 T500J
A3070022 T500J
A3070678 T500J
E03070000081 T500J
A3070403 T500J
A3070959 T500J
A3070461 T500J
A3070404 T500J
E03070000046 T500J
A3070587 T500J
E03070000047 T500J
E03070000037 T500J
A3070804 T500J
E03070000036 T500J
E03070000002 T500J
A3070848 T500J
A3070761 T500J
A3070528 T500J
A3070942 T500J
A3070471 T500J
A3070299 T500J
A3070704 T500J
A3070728 T500J
A3070948 T500J
AE390020 T500J
AE390021 T500J
E03070000031 T500J
A3071096 T500J
A3071019 T500J
A3070931 T500J
A3070870 T500J
A3070911 T500J
A3071095 T500J
A3070827 T500J
A3070657 T500J
A3071031 T500J
A3070986 T500J
AE390017 ET500J
AE390013 T500J
A3070937 T500J
A3070649 T500J
AE390024 ET500J
A3070984 T500J
A3071023 T500J
A3071002 T500J
A3070535 T500J
A3070978 T500J
A3070770 T500J
E03070000100 T500J
A3070882 T500J
E03070000022 T500J
A3071000 T500J
A3070879 T500J
A3070836 T500J
A3070887 T500J
A3070586 T500J
A3070079 T500J
A3070820 T500J
A3070803 T500J
AE390019 ET500J
A3070928 T500J
A3070896 T500J
A3070476 T500J
A3070915 T500J
A3070665 T500J
A3070603 T500J
A3070246 T500J
A3070454 T500J
E03070000082 T500J
A3071064 T500J
A3070796 T500J
A3070689 T500J
A3070924 T500J
A3070453 T500J
A3071093 T500J
A3070995 T500J
A3070436 T500J
A3070611 T500J
A3070518 T500J
A3070973 T500J
A3070782 T500J
A3070546 T500J
A3070494 T500J
A3070697 T500J
A3070612 T500J
AE390038 ET500J
A3070860 T500J
A3070892 T500J
A3070985 T500J
A3070818 T500J
A3070558 T500J
A3070996 T500J
A3070680 T500J
AE390037 ET500J
A3070765 T500J
A3070891 T500J
A3070826 T500J
A3071047 T500J
A3070856 T500J
A3070507 T500J
A3070465 T500J
A3070585 T500J
E03070000070 T500J
A3071030 T500J
A3070699 T500J
E03070000014 T500J
A3070968 T500J
E03070000069 T500J
A3070550 T500J
A3070370 T500J
A3071053 T500J
A3070830 T500J
A3070664 T500J
A3070537 T500J
A3070502 T500J
A3070835 T500J
A3070421 T500J
E03070000085 T500J
A3071011 T500J
A3070530 T500J
A3070718 T500J
A3070662 T500J
E03070000010 T500J
A3070589 T500J
E03070000098 T500J
A3070929 T500J
A3071016 T500J
A3070967 T500J
A3070666 T500J
A3070374 T500J
AE390009 ET500J
A3070938 T500J
AE390031 ET500J
A3070673 T500J
A3070947 T500J
A3071014 T500J
A3070459 T500J
E03070000067 T500J
A3070644 T500J
A3070602 T500J
A3070745 T500J
A3070875 T500J
A3070868 T500J
E03070000094 T500J
A3070824 T500J
A3070734 T500J
A3070756 T500J
A3070773 T500J
A3070945 T500J
A3070691 T500J
AE390004 ET500J
A3070797 T500J
A3070608 T500J
A3070992 T500J
AE390034 ET500J
E03070000042 T500J
A3070810 T500J
A3070754 T500J
A3070620 T500J
A3070592 T500J
A3070552 T500J
A3070427 T500J
A3070346 T500J
A3070496 T500J
A3070596 T500J
E03070000061 T500J
A3070906 T500J
A3070760 T500J
A3070831 T500J
A3070898 T500J
A3070802 T500J
A3070736 T500J
A3070508 T500J
A3070811 T500J
A3070709 T500J
A3070622 T500J
A3070569 T500J
E03070000083 T500J
A3070966 T500J
A3070834 T500J
A3070738 T500J
A3070646 T500J
A3070855 T500J
A3070777 T500J
A3070685 T500J
A3070918 T500J
A3070571 T500J
A3070776 T500J
E03070000078 T500J
A3070788 T500J
A3070536 T500J
A3071005 T500J
A3070998 T500J
A3070980 T500J
A3070746 T500J
E03070000095 T500J
A3070543 T500J
E03070000026 T500J
E03070000024 T500J
A3071059 T500J
A3070888 T500J
A3070575 T500J
A3070661 T500J
A3070468 T500J
A3071043 T500J
A3070751 T500J
A3071012 T500J
A3070805 T500J
A3070675 T500J
A3070613 T500J
A3070872 T500J
A3070923 T500J
A3070876 T500J
A3070885 T500J
E03070000087 T500J
A3070794 T500J
A3070356 T500J
A3070514 T500J
A3071042 T500J
A3070458 T500J
A3070401 T500J
A3071034 T500J
A3070927 T500J
A3070600 T500J
A3070880 T500J
A3070720 T500J
A3070633 T500J
A3070462 T500J
A3070778 T500J
E03070000064 T500J
E03070000052 T500J
E03070000001 T500J
A3070618 T500J
A3070667 T500J
A3071084 T500J
A3070902 T500J
A3070732 T500J
A3071108 T500J
A3070660 T500J
A3070617 T500J
A3071028 T500J
A3070971 T500J
A3070647 T500J
E03070000006 T500J
A3071107 T500J
A3071029 T500J
A3070775 T500J
A3070590 T500J
E03070000043 T500J
A3070663 T500J
A3070648 T500J
A3070107 T500J
A3071088 T500J
E03070000055 T500J
A3070521 T500J
A3071025 T500J
A3070780 T500J
A3070744 T500J
A3070093 T500J
A3070883 T500J
A3070809 T500J
A3070501 T500J
A3070674 T500J
E03070000039 T500J
A3070639 T500J
A3070409 T500J
A3070970 T500J
A3070605 T500J
A3070852 T500J
A3070515 T500J
A3070672 T500J
A3070593 T500J
A3070510 T500J
AE390023 ET500J
AE390012 ET500J
E03070000065 T500J
A3070506 T500J
A3070695 T500J
A3070429 T500J
E03070000080 T500J
E03070000097 T500J
A3070913 T500J
A3070524 T500J
A3070516 T500J
A3070373 T500J
0000E39 T500J_US_E39
A3070440 T500J
A3070658 T500J
A3070493 T500J
A3070844 T500J
A3070881 T500J
A3070652 T500J
A3070730 T500J
A3070437 T500J
A3070357 T500J
A3070719 T500J
A3071066 T500J
A3070574 T500J
A3070877 T500J
A3070843 T500J
A3070703 T500J
E03070000048 T500J
A3070847 T500J
A3070814 T500J
A3070513 T500J
A3071007 T500J
A3071055 T500J
A3071003 T500J
A3070722 T500J
A3070769 T500J
AE390025 T500J
A3070654 T500J
A3070895 T500J
A3070910 T500J
AE390030 T500J
A3070781 T500J
A3070490 T500J
A3070379 T500J
A3070716 T500J
A3070710 T500J
A3070417 T500J
A3070763 T500J
AE390003 ET500J
A3070523 T500J
A3070419 T500J
A3070531 T500J
A3070812 T500J
A3070475 T500J
AE390001 T500J
A3070209 T500J
A3070890 T500J
A3070886 T500J
A3070681 T500J
A3070450 T500J
A3070448 T500J
A3070982 T500J
A3071036 T500J
A3071006 T500J
A3070721 T500J
A3070949 T500J
A3070789 T500J
A3070487 T500J
E03070000008 T500J
A3070560 T500J
A3070548 T500J
A3070557 T500J
A3070874 T500J
A3070863 T500J
A3070705 T500J
A3070653 T500J
A3070821 T500J
A3070787 T500J
A3070694 T500J
A3070861 T500J
E03070000041 T500J
E03070000003 T500J
A3070768 T500J
A3070545 T500J
A3070416 T500J
A3070741 T500J
A3070684 T500J
A3070712 T500J
A3070408 T500J
A3071026 T500J
A3070538 T500J
A3071039 T500J
A3070807 T500J
A3070726 T500J
A3070696 T500J
E03070000051 T500J
A3071024 T500J
A3070505 T500J
A3070432 T500J
E03070000045 T500J
A3070857 T500J
A3070431 T500J
A3070840 T500J
A3070687 T500J
A3070484 T500J
A3070755 T500J
A3070539 T500J
E03070000044 T500J
A3071081 T500J
A3070764 T500J
E03070000090 T500J
AE390014 ET500J
E03070000060 T500J
A3070939 T500J
A3071045 T500J
A3070714 T500J
A3071087 T500J
A3070791 T500J
A3070464 T500J
A3070846 T500J
A3070724 T500J
A3070566 T500J
E03070000059 T500J
E03070000020 T500J
A3071098 T500J
A3070748 T500J
A3070753 T500J
A3070641 T500J
A3070358 T500J
A3070871 T500J
AE390044 T500J
A3070426 T500J
A3070969 T500J
A3071090 T500J
A3071067 T500J
A3070908 T500J
A3070511 T500J
A3070428 T500J
A3070964 T500J
A3070588 T500J
A3071109 T500J
A3071049 T500J
A3070832 T500J
E03070000099 T500J
A3070960 T500J
E03070000071 T500J
A3070987 T500J
A3070727 T500J
A3070576 T500J
A3070405 T500J
A3070010 T500J
A3070711 T500J
A3070582 T500J
A3070455 T500J
A3071110 T500J
A3070565 T500J
E03070000040 T500J
A3070800 T500J
A3070983 T500J
A3070905 T500J
AE390043 ET500J
A3070474 T500J
A3070452 T500J
AE390018 ET500J
A3070990 T500J
A3070723 T500J
A3070542 T500J
A3070627 T500J
A3071083 T500J
A3070740 T500J
A3070676 T500J
A3070599 T500J
A3070504 T500J
E03070000038 T500J
A3070725 T500J
A3070497 T500J
E03070000018 T500J
A3070669 T500J
A3071022 T500J
A3070993 T500J
A3070798 T500J
A3070758 T500J
A3070425 T500J
A3071092 T500J
A3071050 T500J
E03070000084 T500J
A3070544 T500J
E03070000005 T500J
E03070000013 T500J
A3070621 T500J
A3070841 T500J
A3070679 T500J
A3070609 T500J
A3070943 T500J
A3070909 T500J
A3070556 T500J
E03070000028 T500J
E03070000004 T500J
A3071038 T500J
A3070934 T500J
A3070623 T500J
A3070439 T500J
A3070549 T500J
A3070495 T500J
A3070449 T500J
A3070759 T500J
A3070683 T500J
A3071103 T500J
E03070000068 T500J
A3070706 T500J
A3070595 T500J
A3070692 T500J
A3070693 T500J
A3070491 T500J
A3070668 T500J
A3070637 T500J
A3071041 T500J
A3070503 T500J
A3070210 T500J
A3070011 T500J
AE390029 ET500J
E03070000007 T500J
A3070997 T500J
A3070822 T500J
A3070950 T500J
E03070000015 T500J
A3071069 T500J
A3070976 T500J
A3070930 T500J
A3071068 T500J
A3071048 T500J
A3070965 T500J
AE390042 ET500J
A3071102 T500J
A3070904 T500J
A3070829 T500J
A3070433 T500J
E03070000063 T500J
A3070963 T500J
A3070858 T500J
A3070783 T500J
A3071054 T500J
