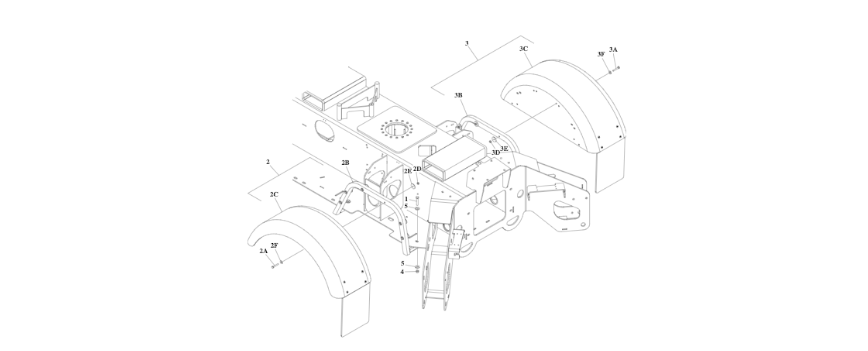

0274434 Fenders Installation (With Mudflaps)
Below, you will find the products that make up the 0274434 Fenders Installation (With Mudflaps) under "Components". The machines and quantities required for this installation item will be located in the tables below "quantities required".
Components
Quantities Required
Below you will find all of the part numbers and quantities required for the installation item.
Component Item |
Component Description |
Quantity |
U/M |
2090056 |
FENDER, ASSY. RIGHT T500J |
1 |
EA |
4751600 |
WSHR FLT .38 .44 1.00 .083 |
8 |
EA |
2090057 |
FENDER, ASSY. LEFT T350 |
1 |
EA |
0641616 |
SCR CAP HH 5,.375-16X2.000 |
4 |
EA |
3311605 |
NUT HEX,.375-16 LOCK |
4 |
EA |
Single Level Where Used
Structured Inquiry
Below you will find all of the components that contain this item.
| Component Item |
Component Description |
| A3070731 | T500J |
| E03070000019 | T500J |
| A3070382 | T500J |
| E03070000057 | T500J |
| E03070000076 | T500J |
| A3070630 | T500J |
| A3070274 | T500J |
| A3070604 | T500J |
| A3070381 | T500J |
| 0000307 | JLG MODEL T500J LIFT |
| A3071051 | T500J |
| A3070626 | T500J |
| E03070000077 | T500J |
| A3070276 | T500J |
| E03070000017 | T500J |
| A3070359 | T500J |
| E03070000074 | T500J |
| E03070000066 | T500J |
| E03070000075 | T500J |
| E03070000056 | T500J |
| A3070380 | T500J |
| A3070337 | T500J |
| A3070627 | T500J |
| A3070383 | T500J |
