0274679 Chassis Drive Installation | BHE Lift Parts

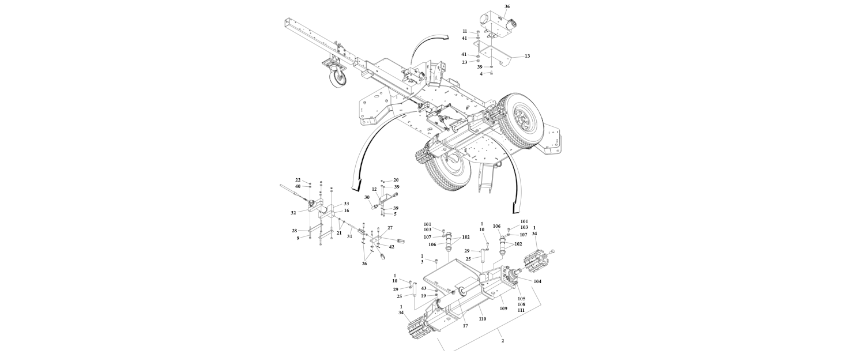

0274679 Chassis Drive Installation diagram of the JLG part number.

Browns Heavy Equipment |

Welcome to our JLG Installation Part Database. Most of the installation items you will find in your JLG parts manuals are sold at the component level. The goal of this database is to provide the components in an easy-to-locate, click-to-purchase format. Whether you are just needing an idea on the cost of the installation item, or you need these items shipped to you right away, we have you covered.

0274679 Chassis Drive Installation

Below, you will find the products that make up the 0274679 Chassis Drive Installation under "Components". The machines and quantities required for this installation item will be located in the tables below "quantities required".

Components

Quantities Required

Component Item
Component Description
Quantity
U/M
4640866 VALVE, MANUAL 1 EA
0903298 BRKT/LUG,VALVE MOUNT 1 EA
0641608 SCR CAP HH 5,.375-16X1.000 6 EA
3841143 ROD, KEEPER SHAFT 2 EA
1684467 CYL,DRIVE ENGAGE T350 1 EA
4923340 HARNESS, DRIVE T350/T500J 1 EA
0641410 SCR CAP HH 5,.250-20X1.250 2 EA
0641418 SCR CAP HH 5,.250-20X2.250 2 EA
3760170 RING, QUICK RELEASE PIN ATTACH 1 EA
4641418 VALVE,FLOW DIVIDER 1 EA
0641526 SCR CAP HH 5,.312-18X3.250 4 EA
3520071 PLUG-SPEC, CAP 1 EA
4341116 SUPT, BRAKE CYL REAR 1 EA
3380624 PANEL,COVER 1 EA
4711500 WSHR FLT .31 .34 .69 .065 7 EA
3311005 NUT HEX,10-24 LOCK 1 EA
0641408 SCR CAP HH 5,.250-20X1.000 4 EA
0274806 INSTL,DRIVE ASSY T350 1 EA
0641607 SCR CAP HH 5,.375-16X.875 2 EA
3291001 NUT HEX,10MM-1.50 CLASS 8 6 EA
1600392 CONTROL MODULE, T-SERIES DRIVE 1 EA
4520591 WHEEL, DRIVE 1 EA
3421565 PIN, SNAPPER 1 EA
0630613 BOLT,CARRIAGE 10M X 30, GR 8.8 6 EA
4000008 SENSOR, PROXIMITY SENSOR ASSY 2 EA
0903356 BRKT/LUG,FLOW DIVIDER MNT 1 EA
0903284 BRKT/LUG,SWITCH MOUNT 1 EA
0641634 SCR CAP HH 5,.375-16X4.250 4 EA
4711400 WSHR FLT .25 .28 .63 .065 31 EA
4641419 VALVE,DRIVE ENABLE 1 EA
3450304 PIN COTTER .09 X 1.00 3 EA
3576136 PLATE, STRAP 2 EA
3422351 PIN 1.00 X 5.19 1045 2 EA
1001193948 CYL,PARKING BRAKE 1 EA
1060584 CABLE, LANYARD 10"LG, 3/16EYE, 1 EA
3311605 NUT HEX,.375-16 LOCK 10 EA
4341148 MOUNT, DRIVE WHEEL PIVOT 1 EA
3311505 NUT HEX,.312-18 LOCK 4 EA
0641506 SCR CAP HH 5,.312-18X.750 3 EA
4341097 SUPT,CYL SLIDE 1 EA
4751000 WSHR FLT #10 .22 .50 .049 2 EA
4751500 WSHR FLT .31 .38 .88 .083 3 EA
0641406 SCR CAP HH 5,.250-20X.750 9 EA
4711600 WSHR FLT .38 .40 .81 .065 12 EA
3311501 NUT HEX,.312-18 REG HT 3 EA
4341149 MOUNT, DRIVE WHEEL 1 EA
3423249 PIN,DRIVE WHEEL PIVOT 1 EA
4300115 STUD, 5/16-18NC X 3" LG 1 EA
4520338 WHEEL, FRICTION DRUM 2 EA
3312205 NUT HEX,.750-10 LOCK 1 EA
0641812 SCR CAP HH 5,.500-13X1.500 4 EA
0642230 SCR CAP HH 5 .750-10 X 3.750 1 EA
4711800 WSHR FLT .50 .53 1.06 .121 8 EA
4641420 VALVE,DRIVE DIRECTIONAL 1 EA
4712200 WSHR FLT .75 .81 1.47 .134 2 EA
3576092 PLATE,EQUALIZER 1 EA
0721006 SCR IND HH MACH,10-24X.750 1 EA
3311405 NUT HEX,.250-20 LOCK 7 EA
4891700 WASHER 6 EA
4751600 WSHR FLT .38 .44 1.00 .083 8 EA
1706701 DECAL, DRIVE SET 1 EA
3311805 NUT HEX,.500-13 LOCK 4 EA
0903299 BRKT/LUG,DRIVE VALVE MOUNT 1 EA

Single Level Where Used

Structured Inquiry

Component Item
Component Description
A3060561 T350
A3060857 T350
A3060586 T350
E03060000055 T350
A3060728 T350
A3060717 T350
A3060817 T350
E03060000081 T350
A3060869 T350
A3060718 T350
A3060503 T350
E03060000047 T350
A3060707 T350
E03060000079 T350
A3060602 T350
A3060583 T350
A3060475 T350
A3060698 T350
A3060576 T350
E03060000089 T350
A3060455 T350
A3060747 T350
A3060847 T350
A3060588 T350
A3060480 T350
E03060000063 T350
A3060704 T350
A3060440 T350
A3060647 T350
E03060000006 T350
A3060476 T350
A3060843 T350
A3060719 T350
A3060780 T350
A3060526 T350
A3060791 T350
A3060506 T350
A3060466 T350
A3060701 T350
E03060000086 T350
A3060570 T350
A3060648 T350
A3060725 T350
A3060449 T350
A3060862 T350
E03060000070 T350
A3060783 T350
E03060000027 T350
A3060803 T350
A3060823 T350
A3060567 T350
E03060000058 T350
A3060643 T350
A3060779 T350
A3060322 T350
E03060000046 T350
A3060637 T350
A3060663 T350
E03060000064 T350
E03060000052 T350
A3060519 T350
A3060761 T350
A3060277 T350
A3060625 T350
A3060753 T350
A3060380 T350
A3060377 T350
E03060000051 T350
A3060692 T350
A3060742 T350
A3060757 T350
A3060355 T350
A3060807 T350
A3060612 T350
A3060815 T350
A3060574 T350
A3060545 T350
A3060743 T350
A3060402 T350
A3060472 T350
E03060000071 T350
A3060557 T350
A3060581 T350
E03060000075 T350
A3060630 T350
A3060381 T350
A3060708 T350
A3060553 T350
0000306 JLG MODEL T350 LIFT
A3060426 T350
A3060793 T350
A3060460 T350
A3060232 T350
A3060840 T350
A3060610 T350
E03060000068 T350
E03060000038 T350
A3060575 T350
A3060498 T350
A3060554 T350
E03060000004 T350
A3060661 T350
A3060485 T350
A3060562 T350
A3060700 T350
A3060486 T350
A3060500 T350
A3060703 T350
A3060702 T350
A3060289 T350
E03060000060 T350
A3060473 T350
A3060627 T350
E03060000018 T350
A3060509 T350
A3060656 T350
A3060737 T350
E03060000059 T350
E03060000017 T350
A3060781 T350
A3060827 T350
A3060451 T350
A3060754 T350
