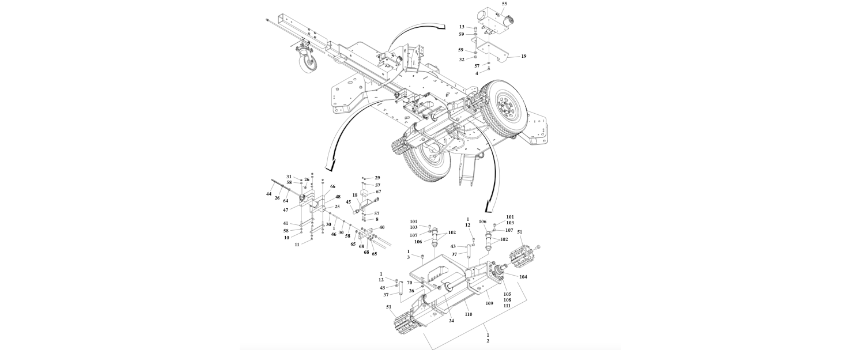

0275380 Chassis Drive Installation diagram of the JLG part number.

Browns Heavy Equipment |

Welcome to our JLG Installation Part Database. Most of the installation items you will find in your JLG parts manuals are sold at the component level. The goal of this database is to provide the components in an easy-to-locate, click-to-purchase format. Whether you are just needing an idea on the cost of the installation item, or you need these items shipped to you right away, we have you covered.

0275380 Chassis Drive Installation

Below, you will find the products that make up the 0275380 Chassis Drive Installation under "Components". The machines and quantities required for this installation item will be located in the tables below "quantities required".

Components

Quantities Required

Component Item
Component Description
Quantity
U/M
4811900 WASHER , M8 4 EA
1060584 CABLE, LANYARD 10"LG, 3/16EYE, 1 EA
0903284 BRKT/LUG,SWITCH MOUNT 1 EA
0721006 SCR IND HH MACH,10-24X.750 1 EA
3290801 NUT HEX,8MM-1.25 CLASS 8 4 EA
4641419 VALVE,DRIVE ENABLE 1 EA
3291001 NUT HEX,10MM-1.50 CLASS 8 9 EA
4000008 SENSOR, PROXIMITY SENSOR ASSY 2 EA
4341149 MOUNT, DRIVE WHEEL 1 EA
4641420 VALVE,DRIVE DIRECTIONAL 1 EA
3422351 PIN 1.00 X 5.19 1045 2 EA
0275391 ASSY, DRIVE T350 CE 1 EA
1600392 CONTROL MODULE, T-SERIES DRIVE 1 EA
0641418 SCR CAP HH 5,.250-20X2.250 2 EA
4300115 STUD, 5/16-18NC X 3" LG 1 EA
0641607 SCR CAP HH 5,.375-16X.875 2 EA
0641406 SCR CAP HH 5,.250-20X.750 9 EA
0903299 BRKT/LUG,DRIVE VALVE MOUNT 1 EA
4712200 WSHR FLT .75 .81 1.47 .134 2 EA
3421565 PIN, SNAPPER 1 EA
4220304 PAD, BRAKE CYL SPACER 2 EA
3520071 PLUG-SPEC, CAP 1 EA
3423249 PIN,DRIVE WHEEL PIVOT 1 EA
4812000 WSHR FLT 10MM 10.5 21 2 2 EA
0641420 SCR CAP HH 5,.250-20X2.500 2 EA
0641608 SCR CAP HH 5,.375-16X1.000 6 EA
3841740 ROD,BRAKE ROD CE DR T350 1 EA
1706701 DECAL, DRIVE SET 1 EA
3760170 RING, QUICK RELEASE PIN ATTACH 1 EA
4751600 WSHR FLT .38 .44 1.00 .083 8 EA
3311005 NUT HEX,10-24 LOCK 1 EA
0903356 BRKT/LUG,FLOW DIVIDER MNT 1 EA
4240127 STRAP, TIE 21 IN. TYTON 1 EA
4891700 WASHER 6 EA
3311505 NUT HEX,.312-18 LOCK 4 EA
3312205 NUT HEX,.750-10 LOCK 1 EA
4751000 WSHR FLT #10 .22 .50 .049 2 EA
3576136 PLATE, STRAP 2 EA
4711400 WSHR FLT .25 .28 .63 .065 31 EA
3311805 NUT HEX,.500-13 LOCK 4 EA
4341116 SUPT, BRAKE CYL REAR 1 EA
0641812 SCR CAP HH 5,.500-13X1.500 4 EA
3380624 PANEL,COVER 1 EA
3311605 NUT HEX,.375-16 LOCK 10 EA
0641410 SCR CAP HH 5,.250-20X1.250 2 EA
4711600 WSHR FLT .38 .40 .81 .065 12 EA
4341097 SUPT,CYL SLIDE 1 EA
4520591 WHEEL, DRIVE 1 EA
3311405 NUT HEX,.250-20 LOCK 14 EA
4711800 WSHR FLT .50 .53 1.06 .121 8 EA
4711500 WSHR FLT .31 .34 .69 .065 13 EA
4520338 WHEEL, FRICTION DRUM 2 EA
4341148 MOUNT, DRIVE WHEEL PIVOT 1 EA
0641506 SCR CAP HH 5,.312-18X.750 3 EA
3841143 ROD, KEEPER SHAFT 2 EA
4640866 VALVE, MANUAL 1 EA
0641540 SCR CAP HH 5,.312-18X5.000 2 EA
4060804 SHIELD, FLEX TRIM 0.450 FT
1684467 CYL,DRIVE ENGAGE T350 1 EA
0642230 SCR CAP HH 5 .750-10 X 3.750 1 EA
3311501 NUT HEX,.312-18 REG HT 3 EA
0641408 SCR CAP HH 5,.250-20X1.000 2 EA
0641634 SCR CAP HH 5,.375-16X4.250 4 EA
4641418 VALVE,FLOW DIVIDER 1 EA
0630613 BOLT,CARRIAGE 10M X 30, GR 8.8 6 EA
3575853 PLATE/BAR,BRAKE EQUALIZER 1 EA
4220305 PAD, SWITCH MOUNT SPACER 1 EA
0641538 SCR CAP HH 5,.312-18X4.750 2 EA
1001193948 CYL,PARKING BRAKE 1 EA
0903298 BRKT/LUG,VALVE MOUNT 1 EA

Single Level Where Used

Structured Inquiry

Component Item
Component Description
A3060416 T350
A3060535 T350
A3060405 T350
E03060000082 T350
A3060533 T350
0000306 JLG MODEL T350 LIFT
A3060366 T350
A3060536 T350
E03060000035 T350
A3060534 T350
E03060000076 T350
