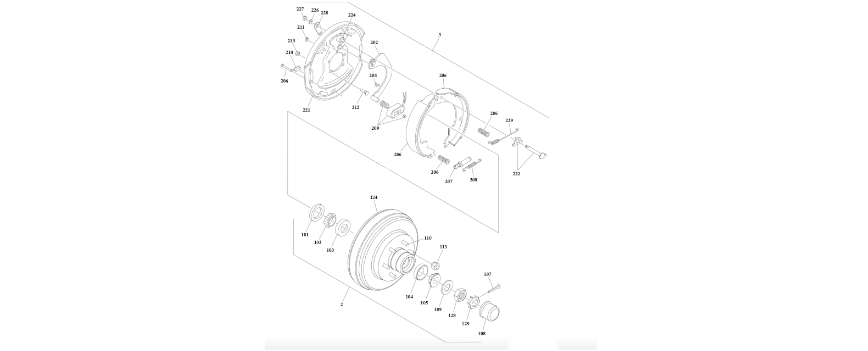

0280159 Torflex Electric Axle Breakdown
Below, you will find the products that make up the 0280159 Torflex Electric Axle Breakdown under "Components". The machines and quantities required for this installation item will be located in the tables below "quantities required".
Components
Quantities Required
| Component Item |
Component Description |
Quantity |
U/M |
| 7027692 | NUT, JAM | 1 | EA |
| 7027678 | LEVER, PARKING BRAKE | 1 | EA |
| 7026393 | CLIP, WIRE | 2 | EA |
| 7027673 | ASSY, PIVOT PIN/CAM (RH) | 1 | EA |
| 7026396 | SPRING, ADJUSTING SCREW | 1 | EA |
| 7027675 | ASSEMBLY, BRAKE (LH) | 1 | EA |
| 7026391 | ARM, LH ACTUATING LEVER | 1 | EA |
| 7027672 | ASSY, PIVOT PIN/CAM (LH) | 1 | EA |
| 7027677 | KIT, MAGNET | 1 | EA |
| 70132 | BRAKE SHOE 12 X 2 (ELECTRIC) | 1 | EA |
| 7026385 | CUP, INNER BEARING | 1 | EA |
| 7027679 | SPRING, RETRACTOR | 1 | EA |
| 7027676 | ASSEMBLY, BRAKE (RH) | 1 | EA |
| 7027511 | CAP, GREASE | 1 | EA |
| 7027655 | CUP, OUTER BEARING | 1 | EA |
| 7026313 | NUT, LUG | 6 | EA |
| 7026395 | ASSEMBLY, ADJUSTER | 1 | EA |
| 7026392 | ARM, RH ACTUATING LEVER | 1 | EA |
| 80317 | PIN, COTTER 5/32 X 2 PLT'D | 1 | EA |
| 7027693 | RETAINER, JAM NUT | 1 | EA |
| 7027654 | SEAL, OIL | 1 | EA |
| 7026384 | CONE, INNER BEARING | 1 | EA |
| 7027656 | CONE, OUTER BEARING | 1 | EA |
| 7026390 | STUD, PRESS-IN | 6 | EA |
| 7027657 | HUB | 1 | EA |
Single Level Where Used
Structured Inquiry
| Component Item |
Component Description |
| 0273700 |
AXLE (ELEC BRAKE)(U/X/C) |
