1001165672 Fuel Plumbing Installation | BHE Lift Parts

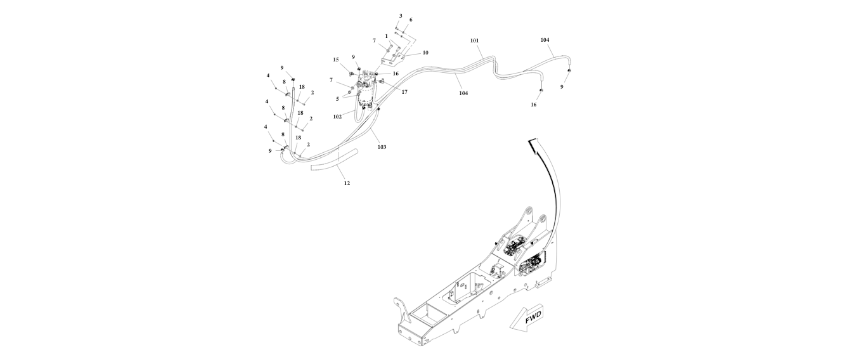

1001165672 Fuel Plumbing Installation diagram of the JLG part number.

Browns Heavy Equipment |

Welcome to our JLG Installation Part Database. Most of the installation items you will find in your JLG parts manuals are sold at the component level. The goal of this database is to provide the components in an easy-to-locate, click-to-purchase format. Whether you are just needing an idea on the cost of the installation item, or you need these items shipped to you right away, we have you covered.

1001165672 Fuel Plumbing Installation

Below, you will find the products that make up the 1001165672 Fuel Plumbing Installation, machines, and quantities required that are included in this installation item will be in the table below "quantities required".

Components

Quantities Required

Component Item
Component Description
Quantity
U/M
1001182094 ADAPTER-MECH,BARB ELBOW 1 EA
4811700 WSHR FLT 6MM 6.4 12.5 1.6 3 EA
1001175568 CLIP,HOSE 1 EA
0760608 SETSCREW REPLACES 0700608 3 EA
1001172375 KIT,BULK FUEL LINES 1 EA
1001179375 ADAPTER-MECH,Q169HB-8-MI14 1 EA
3290605 NUT, CLASS 8 METRIC 3 EA
1001136975 CLAMP,FUEL HOSE 2 EA
1001182603 BRACKET,FILTER MOUNT 1 EA
8406112 CLIP, WIRE & TUBE 3 EA
0761012 SCR CAP HH 8.8,10-1.50X25MM 2 EA
4812100 WASHER, M12 4 EA
1001136975 CLAMP,FUEL HOSE 1 EA
1001136358 SLEEVE,ABRASION 1 EA
3291205 NUT,SELF LOCKING M12 2 EA
0701216 HHCS, GRADE 8.8 METRIC 2 EA
4812000 WSHR FLT 10MM 10.5 21 2 2 EA

Single Level Where Used

Structured Inquiry

Component Item
Component Description
1001243783 INSTALL,ENGINE PKG (HRC)
1001165489 INSTALL,ENGINE TIER 4F
1001196127 INSTALL,ENGINE 74 HP
1001243880 INSTALL, ENGINE PKG (74HP)
