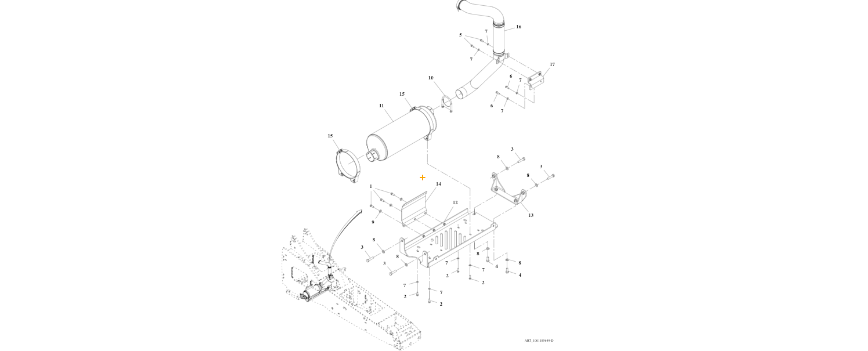

1001185649 Exhaust Installation
Below, you will find the products that make up the 1001185649 Exhaust Installation, machines, and quantities required that are included in this installation item will be in the table below "quantities required".
Components
Quantities Required
| Component Item |
Component Description |
Quantity |
U/M |
| 1001190962 | PIPE,LRC EXHAUST FLEX ASM | 1 | EA |
| 0701219 | HHCS, M12X55 8.8 DIN 931 | 4 | EA |
| 1001180227 | MUFFLER,BAND CLAMP | 2 | EA |
| 1001174327 | SHIELD,SCR FROM OIL | 1 | EA |
| 1001166935 | BRACKET,SCR SUPPORT ASM | 1 | EA |
| 91163035 | MUFFLER, UNPAINTED | 1 | EA |
| 4891600 | WSH HARD .38 .406 .813 .138 | 3 | EA |
| 24921332 | CLAMP, MUFFLER 3 IN 3/8-16 THD | 1 | EA |
| 1001169057 | BRACKET,SCR FRAME MOUNT WLDMT | 1 | EA |
| 4812100 | WASHER, M12 | 6 | EA |
| 4811900 | WASHER , M8 | 8 | EA |
| 0711214 | BOLT,PT METRIC GR10.9(CODED) | 2 | EA |
| 0700812 | SCR CAP HH 8.8,8-1.25X25MM | 4 | EA |
| 1001190990 | BRACKET,EXHAUST SUPPORT WLDMT | 1 | EA |
| 0641607 | SCR CAP HH 5,.375-16X.875 | 3 | EA |
| 0760810 | HHCS, M8-20 8.8 A4C ISO 4017 | 2 | EA |
| 0760812 | SCR CAP HH 8.8,8-1.25X25MM | 2 | EA |
Single Level Where Used
Structured Inquiry
| Component Item |
Component Description |
| 1001166034 | INSTALL,ENGINE LRC |
