1001238932 Auxiliary Power and Battery Installation

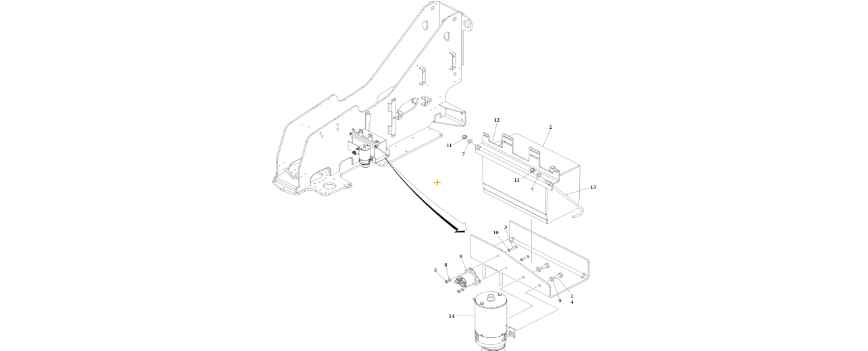

A diagram of JLG part number 1001238932 Auxiliary Power and Battery Installation.

Browns Heavy Equipment |

Welcome to our installation series, a blog series dedicated to JLG installation parts. Most of the installation items you will find in your JLG parts manuals are sold at the component level. The goal of this series is to provide the components in an easy-to-locate, click-to-purchase format. Whether you are just needing an idea on the cost of the installation item, or you need these items shipped to you right away, we have you covered.

1001238932 Auxiliary Power and Battery Installation (With Disconnect)

Below, you will find the products that make up the 1001238932 Auxiliary Power and Battery Installation item. The quantities required are below "Products" and the items and machines that this item is found in will be the table below "quantities required".

Components

Quantities Required

Component Item
Component Description
Quantity
U/M
4811700
WSHR FLT 6MM 6.4 12.5 1.6
2
EA
4711500
WSHR FLT .31 .34 .69 .065
2
EA
0760610
BOLT,FT METRIC GR8.8 (CODED)
2
EA
4871700
WASHEREXT STAR LK METRIC (COD,
2
EA
3290605
NUT, CLASS 8 METRIC
2
EA
88521205
NUT ESNA 21NU-058 5/16-18 HVY
2
EA
3740067
RELAY, SOLENOID ASSY
1
EA
1001185821
PUMP,AUXILIARY W/MOTOR
1
EA
0400075
BATTERY, 12 V STARTER 950CCA
1
EA
0761012
SCR CAP HH 8.8,10-1.50X25MM
2
EA
4812000
WSHR FLT 10MM 10.5 21 2
2
EA
1001093382
BOLT,J-BOLT
2
EA
1001236303
PLATE,BATTERY HOLD DOWN
1
EA

Single Level Where Used

Structured Inquiry

Component Item
Component Description
AC740888
460SJ
AC740511
460SJ
AC440212
460SJ HC3
AC740663
460SJ
0000C74
400S/460SJ_US_C74
AC740954
460SJ
AC740588
460SJ
AC740667
460SJ
AC740676
460SJ
AC440211
400S HC3
AC740651
400S
AC740634
460SJ
0000C76
400SC/460SJC_US_C76
AC740965
460SJ
AC440302
460SJ HC3
0000739
400SC
0000333
400S US
AC440313
460SJ HC3
AC740629
460SJ
AC740633
400S
A3331530
460SJ
AC740760
400S
AC740711
460SJ
AC740628
460SJ
AC440314
460SJ HC3
AC440312
460SJ HC3
AC740923
460SJ
AC740507
460SJ
AC740627
460SJ
AC740666
460SJ
AC740591
460SJ
0000C44
400S_US_HICAP_C44
