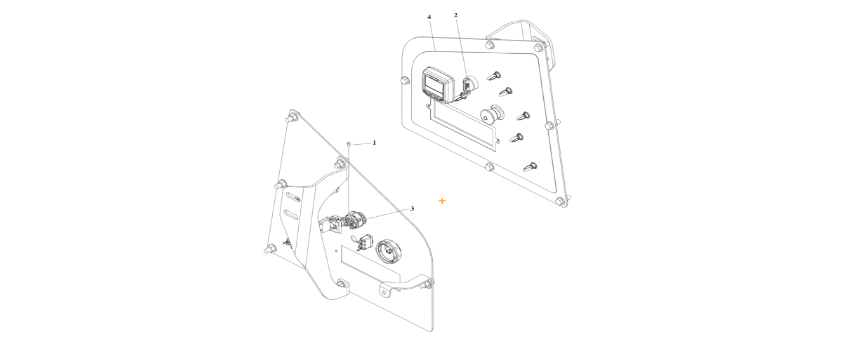

1001239293 Ground Control Mount
Below, you will find the products that make up the 1001239293 Ground Control Mount. The quantities required are below "Products" and the items and machines that this item is found in will be the table below "quantities required".
Components
Quantities Required
| Component Item |
Component Description |
Quantity |
U/M |
| 4360476 | TERMINAL, BLOCK | 1 | EA |
| 1001155044 | NUT-SPEC,15/32-32 UNS-2B | 7 | EA |
| 1001155045 (Superceded 4360328S) | SWITCH,TOGGLE SWITCH, S.P.D.T. | 7 | EA |
| 10836804 | GAUGE, HOURMETER | 1 | EA |
| 1001155043 | WASHER-SPEC,KEY POSITIONING | 7 | EA |
|
1001235531 (Installation Item) |
MOUNT,GROUND CONTROL | 1 | EA |
| 1001274559 | SWITCH,E-STOP | 1 | EA |
Single Level Where Used
Structured Inquiry
| Component Item |
Component Description |
| 1001242106 | INSTALL,ELECTRICAL SYSTEM |
| 1001238480 | INSTALL,ELECTRICAL SYSTEM |
| 1001222142 | INSTALL,KEY SWITCH |
| 1001288259 | INSTALL,ELECTRICAL SYSTEM |
