Welcome to our installation series, a blog series dedicated to JLG installation parts. Most of the installation items you will find in your JLG parts manuals are sold at the component level. The goal of this series is to provide the components in an easy-to-locate, click-to-purchase format. Whether you are just needing an idea on the cost of the installation item, or you need these items shipped to you right away, we have you covered.

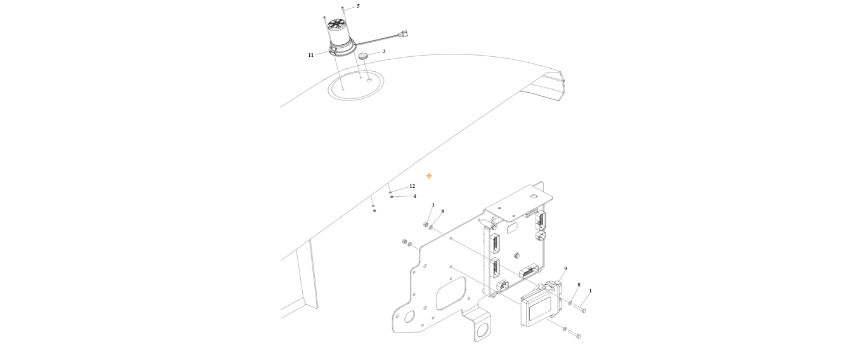

1001242852 Alert Beacon Red Installation
Below, you will find the products that make up the 1001242852 Alert Beacon Red Installation. The quantities required are below "Products" and the items and machines that this item is found in will be the table below "quantities required".
Components
Quantities Required
Component Item |
Component Description |
Quantity |
U/M |
4811700 | WSHR FLT 6MM 6.4 12.5 1.6 | 4 | EA |
3290605 | NUT, CLASS 8 METRIC | 2 | EA |
2540020 | GROMMET, INSULATION | 1 | EA |
1001272682 | LAMP,STROBE BEACON | 1 | EA |
1001142683 | CONTROL MODULE, BEACON | 1 | EA |
0760615 | BOLT,FT METRIC GR8.8 (CODED) | 2 | EA |
3290405 | NUT, HEX 4 X .7 | 2 | EA |
4031509 | SCREW,SOC HD CAP M4X25 (CODED) | 2 | EA |
4811400 | WASHER, 4MM | 2 | EA |
1001142736 | HARNESS,BEACON CONTROL | 1 | EA |
Single Level Where Used
Structured Inquiry
Component Item | Component Description |
AC440244 | 460SJ HC3 |
AC740276 | 460SJ |
AC440264 | 460SJ HC3 |
AC440247 | 460SJ HC3 |
A7390214 | 400SC |
A7390227 | 400SC |
A7390215 | 400SC |
AC440072 | 460SJ HC3 |
AC440071 | 460SJ HC3 |
AC440054 | 460SJ HC3 |
AC760013 | 400SC |
AC440084 | 460SJ HC3 |
AC740365 | 460SJ |
AC440155 | 460SJ HC3 |
AC760114 | 400SC |
AC440134 | 460SJ HC3 |
AC740313 | 460SJ |
AC440263 | 460SJ HC3 |
0000C44 | 400S_US_HICAP_C44 |
0000333 | 400S US |
A7390261 | 400SC |
AC760137 | 400SC |
AC440276 | 460SJ HC3 |
AC440193 | 460SJ HC3 |
AC740339 | 460SJ |
0000C74 | 400S/460SJ_US_C74 |
0000334 | H400S US |
0000739 | 400SC |
AC440074 | 460SJ HC3 |
AC440150 | 460SJ HC3 |
A7390239 | 400SC |
AC740308 | 460SJ |
A7390328 | 400SC |
AC440220 | 460SJ HC3 |
AC740338 | 460SJ |
A7390263 | 400SC |
AC740340 | 460SJ |
AC760127 | 400SC |
A7390268 | 400SC |
A7390233 | 400SC |
AC440210 | 460SJ HC3 |
A7390236 | 400SC |
A7390262 | 400SC |
AC760117 | 400SC |
AC760170 | 400SC |
AC760030 | 400SC |
AC740341 | 460SJ |
0000C76 | 400SC/460SJC_US_C76 |
A7390329 | 400SC |
AC760116 | 400SC |
A7390247 | 400SC |
AC760134 | 400SC |
AC760031 | 400SC |
AC760009 | 400SC |
AC760018 | 460SJC |
A7390248 | 400SC |
