Welcome to our installation series, a blog series dedicated to JLG installation parts. Most of the installation items you will find in your JLG parts manuals are sold at the component level. The goal of this series is to provide the components in an easy-to-locate, click-to-purchase format. Whether you are just needing an idea on the cost of the installation item, or you need these items shipped to you right away, we have you covered.

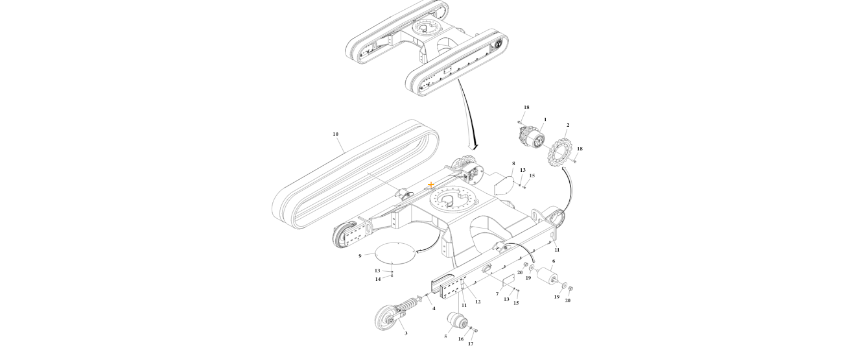

1001244414 Under Carriage Assembly Under Carriage Assembly (Components)
Below, you will find the products that make up the 1001244414 Under Carriage Assembly item. The quantities required are below "Products" and the items and machines that this item is found in will be the table below "quantities required".
Components
Quantities Required
Component Item |
Component Description |
Quantity |
U/M |
70005278 |
FITTING, GREASE |
2 |
EA |
70005286 |
SCREW |
12 |
EA |
70005353 |
ASSEMBLY, HOUSING W/BEARING |
1 |
EA |
70005280 |
ROLLER, UPPER |
2 |
EA |
70005281 |
COVER, FRAME SIDE |
2 |
EA |
70005365 |
KIT, 2ND MOTOR SPEED SPOOL |
1 |
EA |
70005282 |
SHIELD, FRAME MOTOR |
2 |
EA |
70005345 |
ASSEMBLY, COVER |
1 |
EA |
70005356 |
MOTOR, HYDRAULIC |
1 |
EA |
70005354 |
GASKET |
1 |
EA |
70005355 |
RING, CENTERING |
1 |
EA |
70005352 |
NUT |
1 |
EA |
70005360 |
SHAFT, MOTOR |
1 |
EA |
70005349 |
ASSEMBLY, REDUCTION |
1 |
EA |
70005291 |
NUT |
4 |
EA |
70005351 |
ASSEMBLY, PLANETARY |
4 |
EA |
70007471 |
IDLER |
2 |
EA |
70005343 |
CIRCLIP |
1 |
EA |
70005364 |
KIT, MOTOR SEAL |
1 |
EA |
70005284 |
WASHER |
18 |
EA |
70007406 |
WASHER, CARPENTRY (D16) |
28 |
EA |
70005361 |
SEAL, MOTOR SHAFT |
1 |
EA |
70005285 |
SCREW |
4 |
EA |
70007472 |
ROLLER |
14 |
EA |
70005346 |
PAD |
1 |
EA |
70005366 |
KIT, FLUSHING |
1 |
EA |
70007409 |
WASHER, PLAIN (D14) |
4 |
EA |
70005358 |
KIT, CYLINDER BLOCK |
1 |
EA |
70005357 |
ASSEMBLY, BASE PLATE |
1 |
EA |
70005344 |
PLUG, OIL FILL |
2 |
EA |
70005276 |
SPROCKET |
2 |
EA |
70005348 |
GEAR, SUN |
1 |
EA |
70005347 |
O-RING |
1 |
EA |
70005289 |
SCREW |
48 |
EA |
70005283 |
COVER, BOTTOM FRAME |
1 |
EA |
70005363 |
KIT, BRAKE |
1 |
EA |
70005362 |
KIT, BEARING |
1 |
EA |
70005350 |
CIRCLIP |
4 |
EA |
70005359 |
KIT, SWASHPLATE |
1 |
EA |
70005288 |
SCREW |
28 |
EA |
70005275 |
ASSY, MOTOR GEARBOX |
2 |
EA |
Single Level Where Used
Structured Inquiry
Component Item |
Component Description |
AC760062 |
400SC |
AC760055 |
400SC |
AC760063 |
400SC |
AC760131 |
460SJC |
AC760060 |
460SJC |
AC760054 |
400SC |
AC760053 |
460SJC |
0000C76 |
400SC/460SJC_US_C76 |
AC760046 |
400SC |
