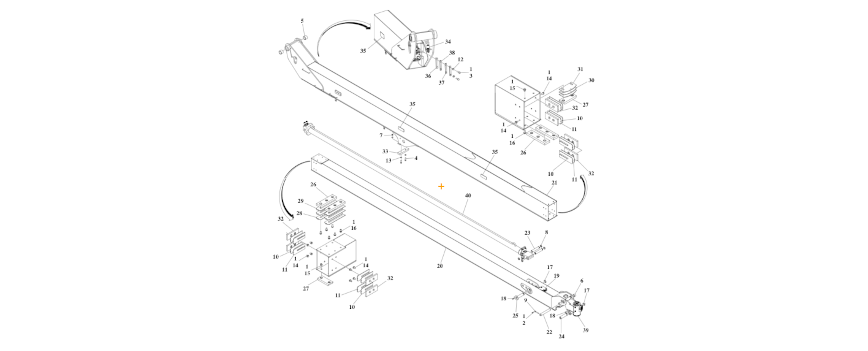

A diagram of JLG part number 1001244874 Main Assembly.

Browns Heavy Equipment |

Welcome to our JLG Installation Part Database. Most of the installation items you will find in your JLG parts manuals are sold at the component level. The goal of this database is to provide the components in an easy-to-locate, click-to-purchase format. Whether you are just needing an idea on the cost of the installation item, or you need these items shipped to you right away, we have you covered.

1001244874 Main Assembly

Below, you will find the products that make up the 1001244874 Main Assembly. The products, machines, and quantities required that are included in this installation item will be in the table below "quantities required".

Components

Quantities Required

Component Item
Component Description
Quantity
U/M
1001163385 CYL,MASTER 1 EA
1001244874 INSTALL,MAIN ASSEMBLY 1 EA
1001168845 PIN,BOOM 1 EA
1001168844 PIN,MASTER CYL / TUNRTABLE 1 EA
1001168843 PIN,MASTER CYL / BOOM 1 EA
1001228092 CYL,LIFT 1 EA
3291605 NUT,METRIC GR8 (CODED) 3 EA
0701619 SCREW, HH CAP 3 EA
3291205 NUT,SELF LOCKING M12 2 EA
1001168854 PIN,LIFT CYL 1 EA
0761218 BOLT,HEX HEAD CAP M12X50 2 EA
3841258 ROD, .62 X .69 X 4.50 4140 3 EA
3841203 ROD, KEEPER 2 EA

Single Level Where Used

Structured Inquiry

Component Item
Component Description
1001244873 Install, Boom and Cylinders
