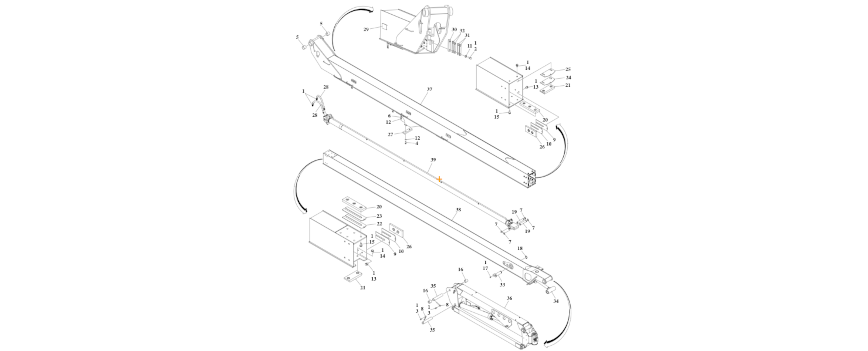

A diagram of JLG part number 1001281887 Main Assembly Boom.

Browns Heavy Equipment |

Welcome to our JLG Installation Part Database. Most of the installation items you will find in your JLG parts manuals are sold at the component level. The goal of this database is to provide the components in an easy-to-locate, click-to-purchase format. Whether you are just needing an idea on the cost of the installation item, or you need these items shipped to you right away, we have you covered.

1001281887 Main Assembly Boom

Below, you will find the products that make up the 1001281887 Main Assembly Boom. The products, machines, and quantities required that are included in this installation item will be in the table below "quantities required".

Components

Quantities Required


Component Item
Component Description
Quantity
U/M
1001171067 PAD,BOOM REST 1 EA
1001237949 PIN,1.75 X 9.75 NICKEL PLATED 2 EA
0761212 HHCS,M12-25 8.8 A4C ISO 4017 2 EA
1001169285 PAD,NON-LOADED TOP/BOTTOM 2 EA
4812000 WSHR FLT 10MM 10.5 21 2 4 EA
4812100 WASHER, M12 4 EA
1001118666 BUSHING,COMPOSITE 1 3/4" ID 2 EA
1001171667 BAR,TELE CYLINDER ATTACH 2 EA
1001237142 PIN,SLAVE CYL / BOOM 1 EA
5251009 SCR HEX FLG,M10 X 18 LG 4 EA
1001237697 CYL,SLAVE 1 EA
0761217 BOLT,FT METRIC GR8.8 (CODED) 2 EA
3291205 NUT,SELF LOCKING M12 2 EA
1001281886 BOOM,FLY WELDMENT 1 EA
0761019 BOLTFT METRIC GR8.8 (CODED), 4 EA
1001281760 BOOM,BASE WELDMENT 1 EA
5251008 SCR HEX FLG,M10 X 16 LG 16 EA
1001169284 PAD,LOADED TOP/BOTTOM 4 EA
5251011 SCR HEX FLG,M10 X 22 LG 12 EA
1001138671 RING,SNAP 1 EA
1001171324 COVER,BOOM DUAL PROX 5 EA
3760133 RING, RETAINER 4 EA
1001137032 SCREWFLAT HD MACH (CODED), 1 EA
1001282095 CYL,TELESCOPE 460SJ LT 1 EA
1001169380 PAD,SIDE 12MM 8 EA
1001168842 PIN,TELE CYL 2 EA
0962036 BUSHING, COMPOSITE 2" 2 EA
3841203 ROD, KEEPER 2 EA
1001238328W BOOM,HI-CAP JIB (DOM) SHIP 1 EA
1001171112 HOSE ASSY,TELE JUMPER HOSE -8 2 EA

Single Level Where Used

Structured Inquiry

Component Item
Component Description
1001282649
Install, Boom and Cylinders 460SJ
