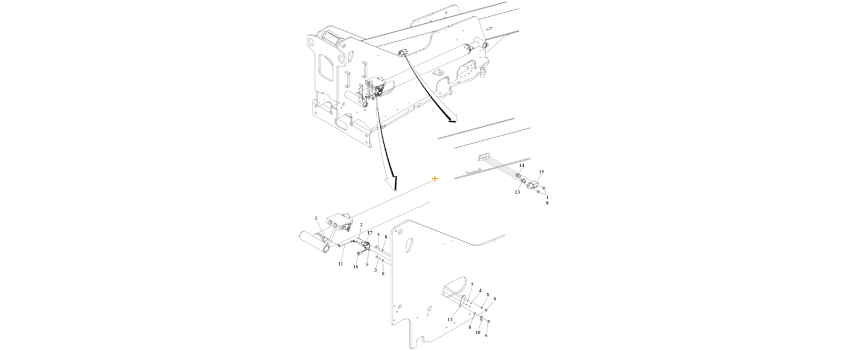

1001288260 Transport Switches Installation diagram of the JLG part number.

Browns Heavy Equipment |

Welcome to our JLG Installation Part Database. Most of the installation items you will find in your JLG parts manuals are sold at the component level. The goal of this database is to provide the components in an easy-to-locate, click-to-purchase format. Whether you are just needing an idea on the cost of the installation item, or you need these items shipped to you right away, we have you covered.

1001288260 Transport Switches Installation

Below, you will find the products that make up the 1001288260 Transport Switches Installation. The products, machines, and quantities required that are included in this installation item will be in the table below "quantities required".

Components (1001288260)

Quantities Required (1001288260)

Component Item (1001288260)
Component Description (1001288260)
Quantity (1001288260)
U/M (1001288260)
1001182570 SENSOR, PROX (M18)(12MM SEN) 1 EA
0761016 BOLT,FT METRIC GR8.8 M10X40 2 EA
4811400 WASHER, 4MM 2 EA
3290605 NUT, CLASS 8 METRIC 2 EA
1001288258 SENSOR,ANGLE 1 EA
3290405 NUT, HEX 4 X .7 2 EA
8406110 CLIP TUBE 1/2 1 EA
4812000 WSHR FLT 10MM 10.5 21 2 4 EA
1001288196 HARNESS,MAIN BOOM ANGLE SNSR 1 EA
1001170565 BRACKET,SENSOR 1 EA
5251008 SCR HEX FLG,M10 X 16 LG 2 EA
1001170847 SENSOR, PROX (M18) (12MM SEN) 1 EA
3291005 NUT M10 (1001288260)
2 EA
1001204715 BRACKET,PROX SWITCHES COVER 1 EA
0760415 HH SCR 8.8 M4X35 (1001288260) 2 EA
1001170564 LINK,SENSOR 1 EA

Single Level Where Used

Structured Inquiry (1001288260)

Component Item
Component Description
C74COM1 (1001288260) (1001288260) COMMON PARTS (1K 45FT) (1001288260)
