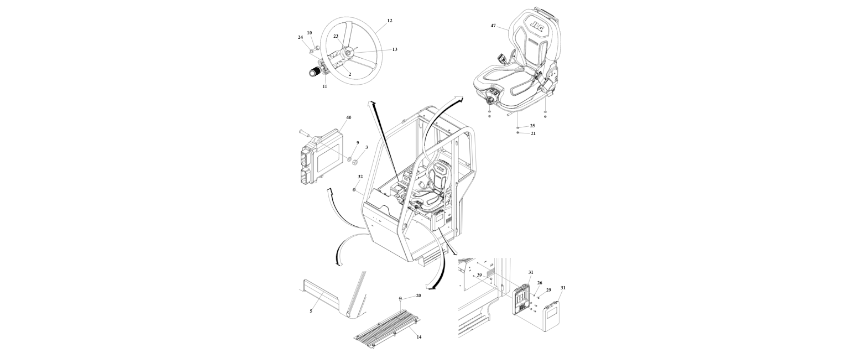

1001290540 Open Cab Installation
Below, you will find the products that make up the 1001290540 Open Cab Installation, machines, and quantities required that are included in this installation item will be in the table below "quantities required".
Components
Quantities Required
| Component Item |
Component Description |
Quantity |
U/M |
| 8305916 | NUT-STEERING WHEEL---SEE DRAWI | 1 | EA |
| 4360569 | SWITCH, BEZEL CARLINGSWITCH | 2 | EA |
| 4060806 | SHIELD, FLEX TRIM | 0.916 | FT |
| 7138836 | STEERING WHEEL | 1 | EA |
| 4360690 | SWITCH, IGNITION | 1 | EA |
| 8303982 | SCREW SELF TAPPING 1/4 NC X 3/ | 6 | EA |
| 1001102844 | BOLT,U 1/4-20 X 1 1/4 | 2 | EA |
| 8307110 | WASHER PLAIN-NARROW-.375-.406- | 4 | EA |
| 1001114867 | SOCKET,12V POWER POINT | 1 | EA |
| 1001223052 (Installation Item) | BRAKE,SAFIM ASSEMBLY WITH | 1 | EA |
| 1001207963 | PLUG,5/8 PUSH IN | 1 | EA |
| 8307109 | WASHER PLAIN-NARROW-.250 X-.28 | 3 | EA |
| 1001183164 | RESERVOIR, BRAKE VALVE | 1 | EA |
| 4761400 | WSH SPG LK .25 .26 .49 .062 | 3 | EA |
| 1001256519 | MOUNT,CAB STEP | 1 | EA |
| 1001275931 | SEAT,SUSPENSION, SEAOP | 1 | EA |
| 8303697 | SCREW-HHC-.312-18-NC-.750-5-ZI | 3 | EA |
| 7138944 | BRUSH STRIPS | 2 | EA |
| 7138878 | STEERING WHEEL, HORN BUTTON | 1 | EA |
| 7138833 | STEERING COLUMN | 1 | EA |
| 5251014 | BOLT,METRIC HEX FLANGE,10X30MM | 4 | EA |
| 1001292279 | CONTROL,SKYTRAK T4F CONTROLLER | 1 | EA |
| 1001182091 | DUCT, WIRE | 1 | EA |
| 8223054 | SWITCH, ROCKER CARLINGSWITCH | 1 | EA |
| 8307112 superseded to 4711800 | WASHER PLAIN-NARROW-.500-.531- | 4 | EA |
| 3930610 | SCREW SOCKET HD MACH,#6-32X5/8 | 2 | EA |
| 8303620 | SCREW-HHC-.375-16-NC-1.000-5-Z | 4 | EA |
| 8307106 | WASHER PLAIN-NARROW-.312 X-.34 | 7 | EA |
| 1001288679 | HARNESS,SEAT BELT ALARM | 1 | EA |
| 8307023 | WASHER LOCK-SPRING-M10-10.13-- | 4 | EA |
| 1001266488 | LAMP,LED INDICATOR RED | 1 | EA |
| 1001201658 | HOSE,BRAKE RESERVOIR | 1 | EA |
| 8305644 | NUT-HEX LOCK ELASTIC-.500-13-- | 4 | EA |
| 1001289539 | SWITCH,BEACON | 1 | EA |
| 3311401 | NUT HEX,.250-20 REG HT | 5 | EA |
| 1320022 | CLAMP,WORM GEAR .22-.63 | 2 | EA |
| 8310382 | NUT-FLANGE (SERRATED FACE)-1/4 | 8 | EA |
| 8305626 | NUT-HEX LOCK ELASTIC-.312-18-- | 4 | EA |
| 1001265914 | COVER,PEDAL | 1 | EA |
| 1001081049 | GROMMET,SPLIT | 1 | EA |
| 1600429 | CONTROLLER, SHIFTER TRANS | 1 | EA |
| 8310026 | SCREW-HHC-.250-20-NC-.750-5-ZI | 3 | EA |
| 1001159878 | SUPPORT,ARMREST | 1 | EA |
| 1001284403 (Pricing not set up) | HARNESS,BEACON OPTION | 1 | EA |
| 8223037 | SWITCH, STEER SELECT | 1 | EA |
| 1001246736 | CAB,OPEN | 1 | EA |
| 1001299548 | GAUGE, CABIN DISPLAY ASSEMBLY | 1 | EA |
| 8303626 | SCREW-HHC-.500-13-NC-1.500-5-Z | 4 | EA |
| 1001264554 | PEDAL,THROTTLE | 1 | EA |
| 8990147 | MANUAL HOLDER | 1 | EA |
| 4710600 | WASHER,FLAT NARROW #6 | 2 | EA |
Single Level Where Used
Structured Inquiry
| Component Item |
Component Description |
| 0000347 | SKY TRAK T4F 10042 LEGACY |
| 0000346 | SKY TRAK T4F 8042 LEGACY |
| A3483191 | 10054 T4F |
| 0000C56 | SKY TRAK 12054 |
| 0000344 | SKY TRAK T4F 6036 |
| 0000345 | SKY TRAK T4F 6042 |
| 0000348 | SKY TRAK 10054 LEGACY T4F |
| A3483172 | 10054 T4F |
| A3483190 | 10054 T4F |
