Welcome to our JLG Installation Part Database. Most of the installation items you will find in your JLG parts manuals are sold at the component level. The goal of this database is to provide the components in an easy-to-locate, click-to-purchase format. Whether you are just needing an idea on the cost of the installation item, or you need these items shipped to you right away, we have you covered.

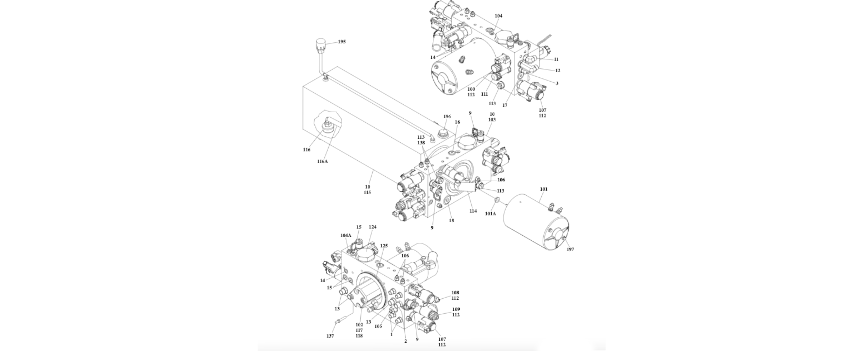

4641342 Valve and Fittings Sub-Assembly
Below, you will find the products that make up the 4641342 Valve and Fittings Sub-Assembly under "Components". The machines and quantities required for this installation item will be located in the tables below "quantities required".
Components
Quantities Required
Below you will find all of the part numbers and quantities required for the installation item.
Component Item |
Component Description |
Quantity |
U/M |
2221086 |
FTG,EMA DIAGNOSTIC TEST PORT C |
3 |
EA |
2110606 |
ADPT,ST S ORFS/ORB 6-6 FG |
3 |
EA |
2110604 |
ADPT,ST S ORFS/ORB 6-4 FG |
1 |
EA |
4641325 |
VALVE,MAIN ELECTRIC COMBO |
1 |
EA |
2110404 |
ADPT,ST S ORFS/ORB 4-4 FG |
4 |
EA |
2130404 |
ADPT,90 DEGREE |
1 |
EA |
2220881 |
ADPT,PLUGHX SOC ORB 2 FG |
3 |
EA |
2220883 |
ADPT,PLUGHX SOC ORB 4 FG |
3 |
EA |
2220887 |
PLUG, HEX SOCKET |
1 |
EA |
2220886 |
PLUG, O'RING HEX #8, 3/4-16 |
1 |
EA |
2170206 |
ADPT,90 L ORFS/ORB 6-6 FG |
1 |
EA |
2130606 |
FITTING,ADAPTOR 90 |
1 |
EA |
2220885 |
ADPT,PLUGHX SOC ORB 6 FG |
2 |
EA |
Single Level Where Used
Structured Inquiry
Below you will find all of the components that contain this item.
Component Item |
Component Description |
0273616 |
CTRL VALVE ELEC T350 |
