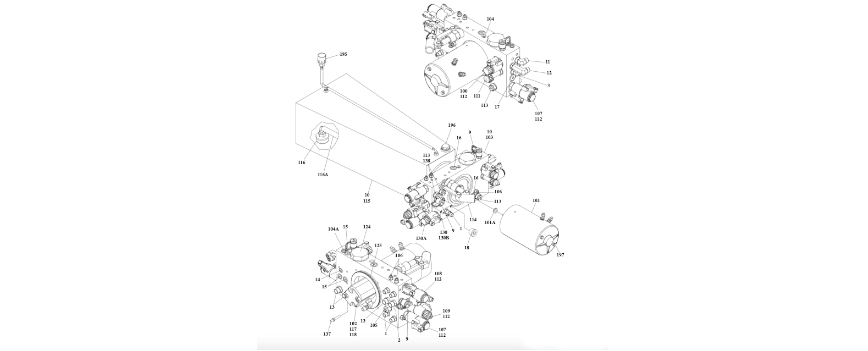

4641343 Valve and Fittings Sub-Assembly
Below, you will find the products that make up the 4641343 Valve and Fittings Sub-Assembly under "Components". The machines and quantities required for this installation item will be located in the tables below "quantities required".
Components
Quantities Required
Below you will find all of the part numbers and quantities required for the installation item.
Component Item |
Component Description |
Quantity |
U/M |
4641326 |
VALVE,MAIN ELECTRIC COMBO |
1 |
EA |
2130606 |
FITTING,ADAPTOR 90 |
1 |
EA |
2110606 |
ADPT,ST S ORFS/ORB 6-6 FG |
3 |
EA |
2220883 |
ADPT,PLUGHX SOC ORB 4 FG |
3 |
EA |
2110604 |
ADPT,ST S ORFS/ORB 6-4 FG |
1 |
EA |
2220881 |
ADPT,PLUGHX SOC ORB 2 FG |
1 |
EA |
2221086 |
FTG,EMA DIAGNOSTIC TEST PORT C |
3 |
EA |
2220886 |
PLUG, O'RING HEX #8, 3/4-16 |
1 |
EA |
2130404 |
ADPT,90 DEGREE |
1 |
EA |
2220887 |
PLUG, HEX SOCKET |
1 |
EA |
2110404 |
ADPT,ST S ORFS/ORB 4-4 FG |
6 |
EA |
2220885 |
ADPT,PLUGHX SOC ORB 6 FG |
2 |
EA |
2170206 |
ADPT,90 L ORFS/ORB 6-6 FG |
1 |
EA |
Single Level Where Used
Structured Inquiry
Below you will find all of the components that contain this item.
Component Item |
Component Description |
0273617 |
CTL VALVE ELEC T500J |
