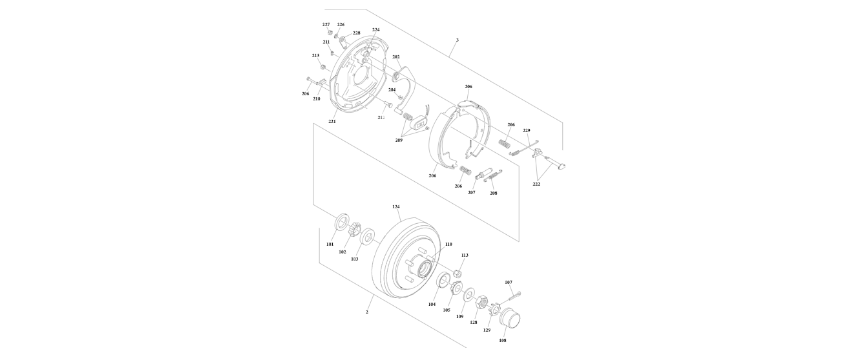

0280158 Torflex Electric Axle Breakdown
Below, you will find the products that make up the 0280158 Torflex Electric Axle Breakdown under "Components". The machines and quantities required for this installation item will be located in the tables below "quantities required".
Components
Quantities Required
| Component Item |
Component Description |
Quantity |
U/M |
| 7027692 | NUT, JAM | 1 | EA |
| 7026393 | CLIP, WIRE | 3 | EA |
| 7027668 | ARM, ACTUATING LEVER (RH) | 1 | EA |
| 7027652 | CAP, GREASE | 1 | EA |
| 7027647 | SEAL, GREASE | 1 | EA |
| 7027648 | CONE, INNER BEARING | 1 | EA |
| 80317 | PIN, COTTER 5/32 X 2 PLT'D | 1 | EA |
| 7027673 | ASSY, PIVOT PIN/CAM (RH) | 1 | EA |
| 7027669 | KIT, SHOE & LINING | 1 | EA |
| 7026395 | ASSEMBLY, ADJUSTER | 1 | EA |
| 7027678 | LEVER, PARKING BRAKE | 1 | EA |
| 7027671 | KIT, MAGNET | 1 | EA |
| 7027650 | CUP, OUTER BEARING | 1 | EA |
| 7027693 | RETAINER, JAM NUT | 1 | EA |
| 7026390 | STUD, PRESS-IN | 5 | EA |
| 7027651 | CONE, OUTER BEARING | 1 | EA |
| 7027667 | ARM, ACTUATING LEVER (LH) | 1 | EA |
| 7027672 | ASSY, PIVOT PIN/CAM (LH) | 1 | EA |
| 7026313 | NUT, LUG | 5 | EA |
| 7027649 | CUP, INNER BEARING | 1 | EA |
| 7027666 | ASSEMBLY, BRAKE (RH) | 1 | EA |
| 7027674 | SPRING, RETRACTOR | 1 | EA |
| 7026396 | SPRING, ADJUSTING SCREW | 1 | EA |
| 7027665 | ASSEMBLY, BRAKE (LH) | 1 | EA |
| 7027653 | HUB | 1 | EA |
Single Level Where Used
Structured Inquiry
| Component Item |
Component Description |
| 0273699 | AXLE (ELEC BRAKE)(U/X/C) |
