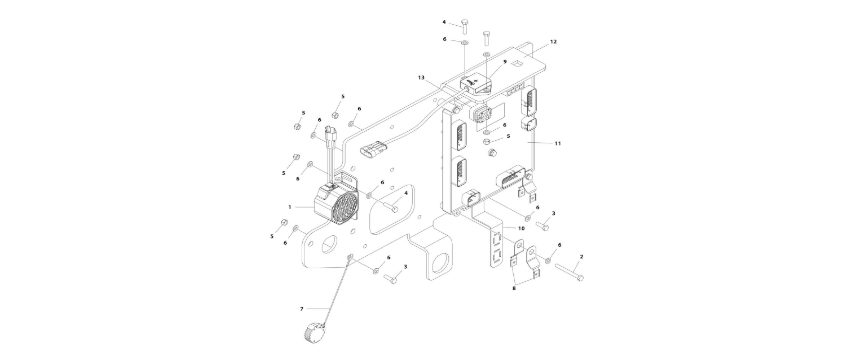

1001172757 Electrical Panel Assembly
Below, you will find the products that make up the 1001172757 Electrical Panel Assembly item. The quantities required are below "Products" and the items and machines that this item is found in will be the table below "quantities required".
Components
Quantities Required
| Component Item | Component Description | Quantity | U/M |
| 0760612 | HHCS,M6-25 8.8 A3C ISO 4017 | 4 | EA |
| 1001219601 | SENSOR,TILT DUAL AXIS CAN | 1 | EA |
| 4811700 | WSHR FLT 6MM 6.4 12.5 1.6 | 22 | EA |
| 1001106736 | CONNECTOR, DUST CAP | 1 | EA |
| 1001215373 | PLATE,ELECTRICAL PANEL | 1 | EA |
| 1001280340 | CONTROLLER ASSY,ADE2 UGM2 | 1 | EA |
| 0140043 | ALARM, BACK UP, UL | 1 | EA |
| 3290605 | NUT, CLASS 8 METRIC | 11 | EA |
| 1001120328 | MOUNT,DEUTSCH DT | 4 | EA |
| 0760610 | BOLT,FT METRIC GR8.8 (CODED) | 2 | EA |
| 1001246859 | CONNECTOR,GRAY,14 POS, AMPSEAL | 1 | EA |
| 1001159162 | BRACKET,ELEC. HARNESS SUPPORT | 1 | EA |
| 0700620 | BOLT, PT METRIC GR8.8 (CODED) | 5 | EA |
Single Level Where Used
Structured Inquiry
| Component Item | Component Description |
| 1001235534 | INSTALL,ELECTRICAL SYSTEM |
| 1001177283 | INSTALL,ELECTRICAL SYSTEM |
| 1001216700 | INSTALL,ELECTRICAL SYSTEM |
| 1001168010 | INSTALL,ELECTRICAL SYSTEM |
| 1001238426 | INSTALL,ELECTRICAL SYSTEM |
| 1001242106 | INSTALL,ELECTRICAL SYSTEM |
| 1001238424 | INSTALL,ELECTRICAL SYSTEM |
| 1001236965 | INSTALL,ELECTRICAL SYSTEM |
| 1001219866 | INSTALL,ELECTRICAL SYSTEM |
| 1001220381 | INSTALL,ELECTRICAL SYSTEM |
| 1001238480 | INSTALL,ELECTRICAL SYSTEM |
| 1001234988 | INSTALL,ELECTRICAL ASSY (SLC) |
| 1001173646 | INSTALL,ELECTRICAL SYSTEM |
| 1001288259 | INSTALL,ELECTRICAL SYSTEM |
| 1001177284 | INSTALL,ELECTRICAL SYSTEM |
| 1001238479 | INSTALL,ELECTRICAL SYSTEM |
| 1001245993 | INSTALL,ELECTRICAL SYSTEM |
| 1001217605 | INSTALL,ELECTRICAL SYSTEM |
| 1001238425 | INSTALL,ELECTRICAL SYSTEM |
| 1001245989 | INSTALL,ELECTRICAL SYSTEM |
| 1001191457 | INSTALL,ELECTRICAL SYSTEM |
| 1001245992 | INSTALL,ELECTRICAL SYSTEM |
| 1001245990 | INSTALL,ELECTRICAL SYSTEM |
