1001185650 Cummins QSF 3.8L LRC Engine Installation | BHE Lift Parts

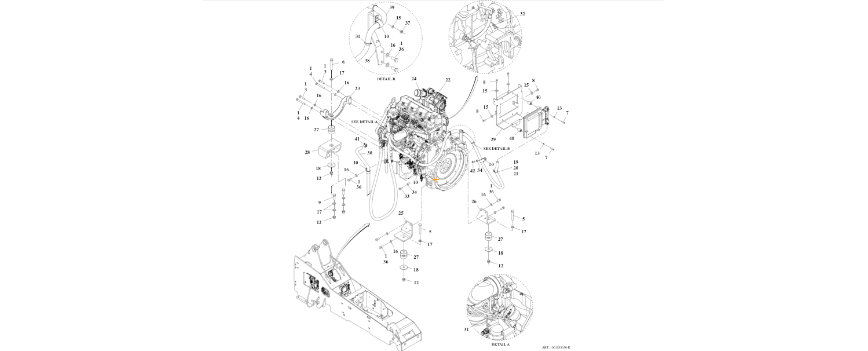

1001185650 Cummins QSF 3.8L LRC Engine diagram of the JLG part number.

Browns Heavy Equipment |

Welcome to our JLG Installation Part Database. Most of the installation items you will find in your JLG parts manuals are sold at the component level. The goal of this database is to provide the components in an easy-to-locate, click-to-purchase format. Whether you are just needing an idea on the cost of the installation item, or you need these items shipped to you right away, we have you covered.

1001185650 Cummins QSF 3.8L LRC Engine

Below, you will find the products that make up the 1001185650 Cummins QSF 3.8L LRC Engine, machines, and quantities required that are included in this installation item will be in the table below "quantities required".

Components

1001211688 Bracket, ECM Mount

Pricing is not set up for the ECM Mounting bracket. This most likely happens because this bracket supersedes to multiple part numbers, depending on the ECM you need for your specific machine. Contact us to find out more.

Diagram of Skytrak/JLG part 1001211688 Bracket, ECM Mount

Quantities Required

Component Item
Component Description
Quantity
U/M
3290805 NUT,SELF LOCKING M8 1 EA
0760614 HHCS,M6-30 8.8 A3C ISO 4017 4 EA
3331615 NUT METRIC GR12&GR10,M16 GR 10 5 EA
0711227 BOLT,PT METRIC GR10.9(CODED) 2 EA
0711627 HEXHD SCR 10.9 PRTTHD,16-2 2 EA
7300435 WASHER, BARRY CONTROLS 2 EA
0771618 BOLT,FT METRIC GR10.9 M16 X 50 2 EA
0711628 HEXHD SCR 10.9 PRTTHD,16-2 1 EA
7125871 CONDUIT .50 ID X 8.0 1 EA
1001138645 MOUNT,CABLE TIE 1 EA
0760810 HHCS, M8-20 8.8 A4C ISO 4017 4 EA
1001186718 INSULATE,HEAT SHIELD TUBE 1 EA
4811902 WASHER, M8 LG OD 5 EA
1001165660 MOUNT,ISOLATOR 1 EA
1001161920 ADAPTER-MECH,TURBO COMPRESSOR 1 EA
4812300 WASHER, FLAT M-16 6 EA
1001192134 HOSE,CUMMINS 3.8L,BLOWBY,SPL 1 EA
0761014 SCREW,23CSM10-30 8.8A4CISO4017 1 EA
88261015 SCREW, HBHCS-1/4-20 X 5/8 ZN 1 EA
0711219 HEXHD SCR 10.9 PRTTHD,12 X 55 2 EA
7300435 WASHER, BARRY CONTROLS 1 EA
1001165660 MOUNT,ISOLATOR 2 EA
1001197233 BRACKET,AC/DEF HOSE WELDMENT 1 EA
0641608 SCR CAP HH 5,.375-16X1.000 1 EA
4812100 WASHER, M12 15 EA
1001165518 BRACKET,ENGINE MOUNT RH FRONT 1 EA
1001165517 BRACKET,ENGINE MOUNT LH FRONT 1 EA
4812300 WASHER, FLAT M-16 1 EA
4812000 WSHR FLT 10MM 10.5 21 2 2 EA
1001211688 BRACKET,ECM MOUNT WELDMENT 1 EA
1001180473 BRACKET,REAR ENGINE MOUNT 1 EA
1001160116 BRACKET,ENGINE CASTING-MACHINE 1 EA
4811700 WSHR FLT 6MM 6.4 12.5 1.6 4 EA
1001211697 MOUNT,ISOLATOR ECM 4 EA
0711214 BOLT,PT METRIC GR10.9(CODED) 11 EA
1001154790 ENGINE,CUMMINS QSF 3.8L LRC 1 EA
1001173535 CLAMP,DEF HOSE,14-27MM 1 EA
8406303 CLIP TUBE 1 3/16 4 EA

Single Level Where Used

Structured Inquiry

Component Item
Component Description
1001166034
Install, Engine LRC
