1001196124 Cummins QSF 3.8L 74HP Engine Installation | BHE Lift Parts

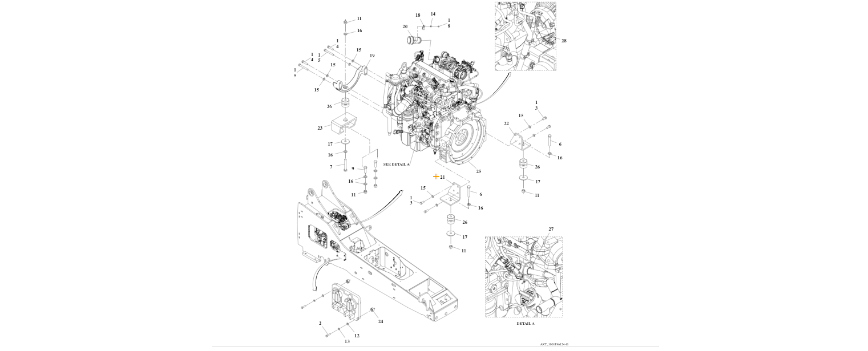

1001196124 Cummins QSF 3.8L 74HP Engine diagram of the JLG part number.

Browns Heavy Equipment |

Welcome to our JLG Installation Part Database. Most of the installation items you will find in your JLG parts manuals are sold at the component level. The goal of this database is to provide the components in an easy-to-locate, click-to-purchase format. Whether you are just needing an idea on the cost of the installation item, or you need these items shipped to you right away, we have you covered.

1001196124 Cummins QSF 3.8L 74HP Engine

Below, you will find the products that make up the 1001196124 Cummins QSF 3.8L 74HP Engine, machines, and quantities required that are included in this installation item will be in the table below "quantities required".

Components

Quantities Required

Component Item
Component Description
Quantity
U/M
1001160116 BRACKET,ENGINE CASTING-MACHINE 1 EA
0760605 SCR CAP HH 8.8,6-1.00X10MM 1 EA
7125871 CONDUIT .50 ID X 8.0 1 EA
0711627 HEXHD SCR 10.9 PRTTHD,16-2 2 EA
4812300 WASHER, FLAT M-16 2 EA
0711628 HEXHD SCR 10.9 PRTTHD,16-2 1 EA
1001165518 BRACKET,ENGINE MOUNT RH FRONT 1 EA
1001196665 ENGINE,CUMMINS QSF 3.8L 74 HP 1 EA
1001165660 MOUNT,ISOLATOR 2 EA
0771618 BOLT,FT METRIC GR10.9 M16 X 50 2 EA
0711214 BOLT,PT METRIC GR10.9(CODED) 8 EA
1001186373 MOUNT,ISOLATOR, ECM 4 EA
3331615 NUT METRIC GR12&GR10,M16 GR 10 3 EA
4811700 WSHR FLT 6MM 6.4 12.5 1.6 1 EA
4711500 WSHR FLT .31 .34 .69 .065 4 EA
8406112 CLIP, WIRE & TUBE 1 EA
7300435 WASHER, BARRY CONTROLS 2 EA
0711227 BOLT,PT METRIC GR10.9(CODED) 2 EA
0641511 SCR CAP HH 5,.312-18X1.375 4 EA
1001165517 BRACKET,ENGINE MOUNT LH FRONT 1 EA
1001165660 MOUNT,ISOLATOR 1 EA
7300435 WASHER, BARRY CONTROLS 1 EA
4761500 WSH SPG LK .31 .33 .59 .078 4 EA
1001180473 BRACKET,REAR ENGINE MOUNT 1 EA
3331615 NUT METRIC GR12&GR10,M16 GR 10 2 EA
4812300 WASHER, FLAT M-16 6 EA
1001161920 ADAPTER-MECH,TURBO COMPRESSOR 1 EA
4812100 WASHER, M12 12 EA
0711219 HEXHD SCR 10.9 PRTTHD,12 X 55 2 EA

Single Level Where Used

Structured Inquiry

Component Item
Component Description
1001243880 INSTALL, ENGINE PKG (74HP)
1001196127 INSTALL,ENGINE 74 HP
