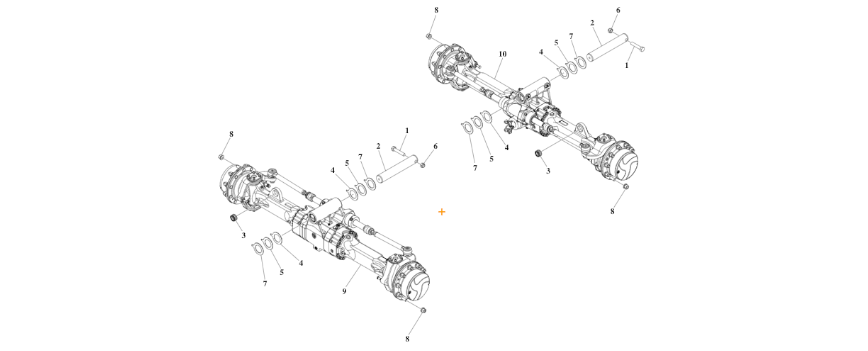

1001222210 Axle Installation for Skytrak diagram of the JLG part number.

Browns Heavy Equipment |

Welcome to our JLG Installation Part Database. Most of the installation items you will find in your JLG parts manuals are sold at the component level. The goal of this database is to provide the components in an easy-to-locate, click-to-purchase format. Whether you are just needing an idea on the cost of the installation item, or you need these items shipped to you right away, we have you covered.

1001222210 Axle Installation for 8042

Below, you will find the products that make up the 1001222210 Axle Installation for 8042, machines, and quantities required that are included in this installation item will be in the table below "quantities required".

Components

Quantities Required

Component Item
Component Description
Quantity
U/M
1001245214 SHIM,AXLE 4 EA
3423254 PIN,AXLE PIVOT 2 EA
FRONTAXLE DANA FRONT AXLE PART NO 1 EA
8050001 BEARING,SELFALIGN 2 EA
1001245213 SHIM,AXLE 4 EA
0642640 SCR CAP HH 5,1.000-08X5.000 2 EA
1001220492 AXLE,FRONT DANA 212, 8042 1 EA
1001245215 SHIM,AXLE 4 EA
REARAXLE DANA REAR AXLE PART NO 1 EA
91403193 LUG NUT M22 X 1.5 40 EA
8310116 NUT-HEX LOCK ELASTIC-1.000-8-- 2 EA
1001220493 AXLE,REAR DANA 212, 8042 1 EA

Single Level Where Used

Structured Inquiry

Component Item
Component Description
8042T4FENG1VAAG ENGINE, HRC
8042T4FENG1 ENGINE, HRC
8042T4FENG1VAAN ENGINE, HRC
8042T4FENG1VAAP ENGINE, HRC
8042T4FENG4 ENGINE, HRC (W/ASOV)
8042T4FENG1VAAV ENGINE, HRC
8042T4FENG1VAAQ ENGINE, HRC
8042T4FENG1VAAU ENGINE, HRC
8042T4FENG1VAAB ENGINE, HRC
8042T4FENG1VAAK ENGINE, HRC
8042T4FENG1VAAH ENGINE, HRC
8042T4FENG2 ENGINE, LRC
8042T4FENG1VAAX ENGINE, HRC
8042T4FENG1VAAJ ENGINE, HRC
8042T4FENG1VAAW ENGINE, HRC
8042T4FENG1VAAT ENGINE, HRC
8042T4FENG1VAAR ENGINE, HRC
8042T4FENG1VAAE ENGINE, HRC
8042T4FENG1VAAM ENGINE, HRC
8042T4FENG1VAAC ENGINE, HRC
8042T4FENG1VAAY ENGINE, HRC
8042T4FENG1VAAA ENGINE, HRC
8042T4FENG1VAAF ENGINE, HRC
8042T4FENG1VAAI ENGINE, HRC
8042T4FENG1VAAO ENGINE, HRC
8042T4FENG1VAAL ENGINE, HRC
8042T4FENG1VAAD ENGINE, HRC
8042T4FENG1VAAS ENGINE, HRC
