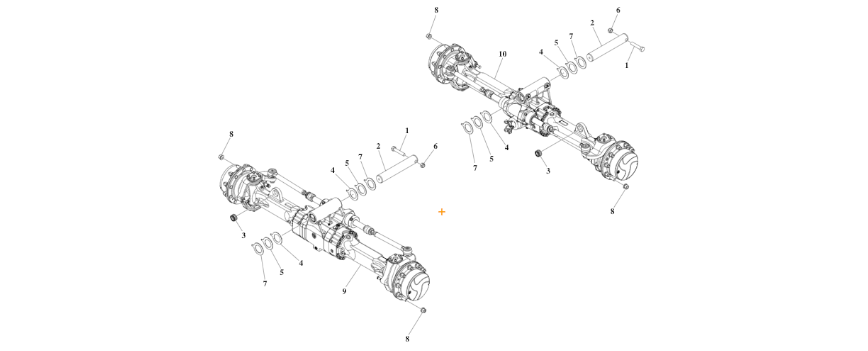

1001229919 Axle Installation for 74HP Skytrak
Below, you will find the products that make up the 1001229919 Axle Installation for 74HP Skytrak, machines, and quantities required that are included in this installation item will be in the table below "quantities required".
Components
Quantities Required
| Component Item |
Component Description |
Quantity |
U/M |
| 8310116 | NUT-HEX LOCK ELASTIC-1.000-8-- | 2 | EA |
| 1005798100 | AXLE,REAR DANA 212, 8042 74HP | 1 | EA |
| FRONTAXLE | DANA FRONT AXLE PART NO | 1 | EA |
| 1001245213 | SHIM,AXLE | 4 | EA |
| 1005798000 | AXLE,FRONT DANA 212, 8042 74HP | 1 | EA |
| REARAXLE | DANA REAR AXLE PART NO | 1 | EA |
| 1001245215 | SHIM,AXLE | 4 | EA |
| 91403193 | LUG NUT M22 X 1.5 | 40 | EA |
| 1001245214 | SHIM,AXLE | 4 | EA |
| 8050001 | BEARING,SELFALIGN | 2 | EA |
| 0642640 | SCR CAP HH 5,1.000-08X5.000 | 2 | EA |
| 3423254 | PIN,AXLE PIVOT | 2 | EA |
Single Level Where Used
Structured Inquiry
| Component Item |
Component Description |
| 8042T4FENG5VAAA | ENGINE, T4F (74 HP)(W/ASOV) |
| 8042T4FENG5VAAB | ENGINE, T4F (74 HP)(W/ASOV) |
| 8042T4FENG3VAAC | ENGINE, T4F (74 HP) |
| 8042T4FENG5 | ENGINE, T4F (74 HP)(W/ASOV) |
| 8042T4FENG3VAAE | ENGINE, T4F (74 HP) |
| 8042T4FENG3VAAA | ENGINE, T4F (74 HP) |
| 8042T4FENG3VAAD | ENGINE, T4F (74 HP) |
| 8042T4FENG3 | ENGINE, T4F (74 HP) |
| 8042T4FENG3VAAB | ENGINE, T4F (74 HP) |
