Welcome to our installation series, a blog series dedicated to JLG installation parts. Most of the installation items you will find in your JLG parts manuals are sold at the component level. The goal of this series is to provide the components in an easy-to-locate, click-to-purchase format. Whether you are just needing an idea on the cost of the installation item, or you need these items shipped to you right away, we have you covered.

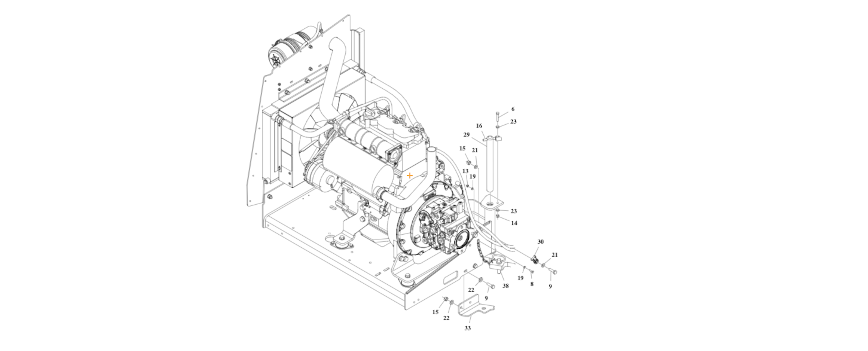

1001190869 Engine Deutz T4I D2.3L3 Installation
Below, you will find the products that make up the 1001190869 Engine Deutz T4I D2.3L3 Installation. The quantities required are below "Products" and the items and machines that this item is found in will be the table below "quantities required".
Components
Quantities Required
| Component Item |
Component Description |
Quantity |
U/M |
| 3841143 | ROD, KEEPER SHAFT | 1 | EA |
| 5261200 | NUT,METRIC HEX FLANGE | 1 | EA |
| 1001135196 | PIN,NICKLE PLATED | 1 | EA |
| 1001172195 | PIPE,EXHAUST (T4I) | 1 | EA |
| 8405009 | CLAMP MINATURE 7/32 DIA | 5 | EA |
| 1701505 | DECAL,DSL | 1 | EA |
| 8750031 | WELDING PLATE TWIN METRIC | 1 | EA |
| 0761015 | HHCS,M10-35 8.8 A4C ISO 4017 | 5 | EA |
| 4812000 | WSHR FLT 10MM 10.5 21 2 | 6 | EA |
| 0700817 | HHCS, M8-45 8.8 A4C ISO 4014 | 1 | EA |
| 5240800 | WASHER,THRU HARDENED 8MM | 2 | EA |
| 0440162 | WASHER, THRUST .12X2.37X1.26 | 1 | EA |
| 2220313 | FTG, 90 NPTF/BARB 6-6 BR | 1 | EA |
| 4811700 | WSHR FLT 6MM 6.4 12.5 1.6 | 10 | EA |
| 4812100 | WASHER, M12 | 4 | EA |
| 0760610 | BOLT,FT METRIC GR8.8 (CODED) | 1 | EA |
| 4711500 | WSHR FLT .31 .34 .69 .065 | 1 | EA |
| 3291005 | NUT M10 | 5 | EA |
| 1001167512 | BRACKET,ENGINE TRAY STOW | 1 | EA |
| 1001190868 | ENGINE,(DSL) (DEUTZ D2011L03) | 1 | EA |
| 0700818 | HHCS, M8-50 A4C ISO 4014 | 1 | EA |
| 5251215 | BOLT,METRIC HEX FLANGE,12X35MM | 1 | EA |
| 2180348 | FTG-SPEC, BARBED .25NPT X.31 | 2 | EA |
| 0641504 | SCR CAP HH 5,.312-18X.500 | 1 | EA |
| 1001169823 | PLATE,ENGINE LOCK | 1 | EA |
| 0700614 | SCR CAP HH 8.8,6-1.00X30MM | 4 | EA |
| 2720058 | HOSE, FUEL 5/16 BULK | 16.900 | FT |
| 1001156107 | HOLDER,TYTON CABLE | 1 | EA |
| 2750532 | HOSE, LOW PRES 3/8"-BULK | 5.540 | FT |
| 8750014 | CLAMP SET TWIN .625 HOSE | 1 | EA |
| 3290805 | NUT,SELF LOCKING M8 | 1 | EA |
| 1001167038 | CABLE,BATTERY CABLE KIT T4I | 1 | EA |
| 3290605 | NUT, CLASS 8 METRIC | 5 | EA |
| 4811902 | WASHER, M8 LG OD | 1 | EA |
| 3422532 | PIN, HITCH (CHAIN,COTTER) | 1 | EA |
Single Level Where Used
Structured Inquiry
| Component Item |
Component Description |
| C76EGN1 | ENGINE (DEUTZ) T4I |
| 40C739EGN5 | ENGINE (DEUTZ)(E)PRE-BUY |
| 40C739EGN1 | ENGINE (DEUTZ) T4I (E) |
