1001206402 Hood Installation

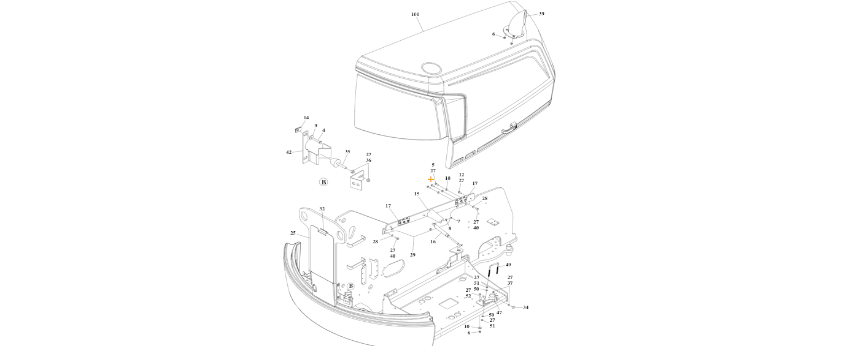

Below, you will find the products that make up the 1001206402 Hood Installation. The quantities required are below "Products" and the items and machines that this item is found in will be the table below "quantities required".
Components
Quantities Required
|
Component Item |
Component Description |
Quantity |
U/M |
| 1001167918 | SPRING,GAS | 4 | EA |
| 1001212822 | MOUNT,HINGE & GAS SPRING | 1 | EA |
| 4711600 | WSHR FLT .38 .40 .81 .065 | 12 | EA |
| 1001222043 | INSULATE,HEAT SHIELD | 1 | EA |
| 1001228406 | BOLT,CARRIAGE 10MX35, GR 8.8 | 2 | EA |
| 90200755 | TAPE, WEATHER STRIP | 0.270 | FT |
| 4812002 | FLATWASHER, METRIC | 16 | EA |
| 0760816 | BOLT,FT METRIC GR8.8 M8X40 | 4 | EA |
| 3290605 | NUT, CLASS 8 METRIC | 4 | EA |
| 0761012 | SCR CAP HH 8.8,10-1.50X25MM | 10 | EA |
| 5251012 | BOLT,METRIC HEX FLANGE,10X25MM | 8 | EA |
| 1001113047 | SEAL, ADHESIVE BACK | 4.200 | FT |
| 0761014 | SCREW,23CSM10-30 8.8A4CISO4017 | 15 | EA |
| 0940049 | BUMPER, | 2 | EA |
| 1001250287 | BRACKET,ENGINE 400S | 1 | EA |
| 1001219134 | PLATE,BUMPER MOUNT | 2 | EA |
| 1001159323 | DECAL,JLG - 8" BLACK | 1 | EA |
| 1001222044 | INSULATE,HEAT SHIELD | 1 | EA |
| 0760608 | SETSCREW REPLACES 0700608 | 4 | EA |
| 0630613 | BOLT,CARRIAGE 10M X 30, GR 8.8 | 2 | EA |
| 1001211636 | PLATE,TANK SIDE HOOD SUPPORT | 1 | EA |
| 1001199207 | BUMPER,METAL BUMPER | 1 | EA |
| 3311501 | NUT HEX,.312-18 REG HT | 4 | EA |
| 1001169046 | NUT-SPEC,HINGE | 4 | EA |
| 3291005 | NUT M10 | 7 | EA |
| 3271601 | NUT HEX .375-16 GR 8 | 8 | EA |
| 4812000 | WSHR FLT 10MM 10.5 21 2 | 16 | EA |
| 4811900 | WASHER , M8 | 4 | EA |
| 1001285143 | HOOD,KIT 400S/460SJ | 1 | EA |
| 1001149160 | NUT-SPEC,M8 TINNERMAN | 4 | EA |
| 1001199901 | BUMPER,B6 HOOD | 1 | EA |
| 1001211633 | PLATE,ENGINE SIDE HOOD SUPPORT | 1 | EA |
| 1001206314 | BUMPER,RUBBER | 4 | EA |
| 3311601 | NUT HEX,.375-16 REG HT | 8 | EA |
| 1001212819 | MOUNT,HINGE & GAS SPRING | 1 | EA |
| 1001250289 | BRACKET,TANK 400S | 1 | EA |
| 1001173354 | COVER,TURNTABLE | 1 | EA |
| 1001223387 | INSULATE,HEAT SHIELD | 1 | EA |
| 1001174098 | PIPE,EXHAUST | 1 | EA |
| 1001243414 | BOLT,U -BOLT 3/8-16 X4 X 4 5/8 | 2 | EA |
Single Level Where Used
Structured Inquiry
| Component Item |
Component Description |
| 40C739HOD2 | HOOD/EGN BAFFLE (STEEL) |
| C75HOD2 | HOOD/EGN BAFFLE (STEEL) |
| C44HOD2 | HOOD/EGN BAFFLE (STEEL) |
| C76HOD2 | HOOD/EGN BAFFLE (STEEL) |
| 40S333HOD2 | HOOD/EGN BAFFLE (STEEL) |
| C74HOD2 | HOOD/EGN BAFFLE (STEEL) |
