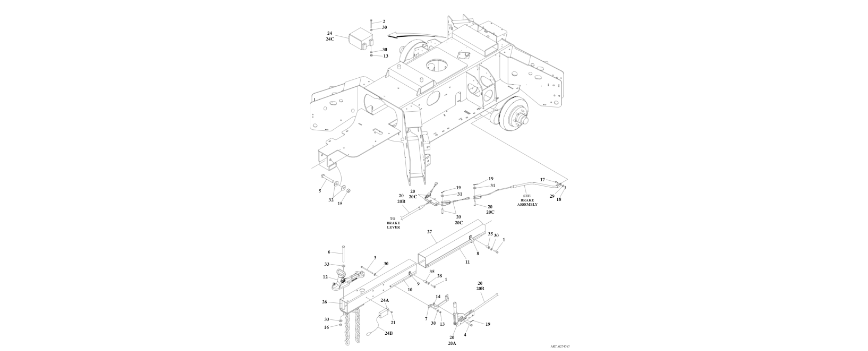

1001243180 Axle and Tongue SRG Installation (2" Collar)
Below, you will find the products that make up the 1001243180 Axle and Tongue SRG Installation (2" Collar) under "Components". The machines and quantities required for this installation item will be located in the tables below "quantities required".
Components
Quantities Required
| Component Item |
Component Description |
Quantity |
U/M |
| 1060799 | CABLE, LANYARD 11.50 LG | 1 | EA |
| 1560017 | CONDUIT, SPLIT POLY BLK | 1 | EA |
| 3420592 | PIN, HAIR COTTER | 1 | EA |
| 0641430 | SCR CAP HH 5,.250-20X3.750 | 2 | EA |
| 3311505 | NUT HEX,.312-18 LOCK | 2 | EA |
| 4711800 | WSHR FLT .50 .53 1.06 .121 | 2 | EA |
| 4569096 | TUBE,3/16 HYD BRAKE 13FT | 1 | EA |
| 0641412 | SCR CAP HH 5,.250-20X1.500 | 2 | EA |
| 0641838 | SCR CAP HH 5,.500-13X4.750 | 1 | EA |
| 3890041 | ROPE/CABLE,PARKING BRAKE | 1 | EA |
| 4569512 | TUBE, TONGUE | 1 | EA |
| 4711000 | FLT WSHR, #10 | 2 | EA |
| 3311805 | NUT HEX,.500-13 LOCK | 4 | EA |
| 1320060 | CLAMP, HOSE | 2 | EA |
| 70212 | CHAIN, SAFETY W/HOOK | 2 | EA |
| 4751400 | WSHR FLT .25 .31 .73 .065 | 16 | EA |
| 0903108 | BRKT/LUG,PARK BRAKE MOUNT | 1 | EA |
| 2902349 | KIT,HYD BRAKE LINE | 1 | EA |
| 0641514 | SCR CAP HH 5,.312-18X1.750 | 2 | EA |
| 3312205 | NUT HEX,.750-10 LOCK | 2 | EA |
| 4752200 | WSHR FLT .75 .81 2.00 .148 | 4 | EA |
| 0642240 | SCR CAP HH 5,.750-10X5.000 | 2 | EA |
| 0641836 | SCR CAP HH 5,.500-13X4.500 | 3 | EA |
| 4751500 | WSHR FLT .31 .38 .88 .083 | 2 | EA |
| 8580420 | NUT WELL | 2 | EA |
| 0641406 | SCR CAP HH 5,.250-20X.750 | 5 | EA |
| 3450304 | PIN COTTER .09 X 1.00 | 5 | EA |
| 1001243182 | HITCH,HYD BRAKE 2" COLLAR | 1 | EA |
| 3311405 | NUT HEX,.250-20 LOCK | 7 | EA |
| 3820017 | RIVET,POP .156 | 2 | EA |
| 2300006 | FLUID,BRAKE,DOT 3 | 0.063 | GL |
Single Level Where Used
Structured Inquiry
| Component Item |
Component Description |
| A3060766 | T350 |
| A3060886 | T350 |
| 0000306 | JLG MODEL T350 LIFT |
| A3060891 | T350 |
| A3060890 | T350 |
