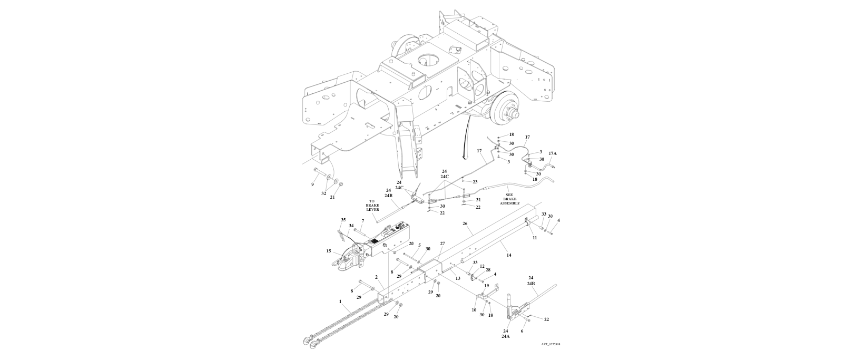

1001243181 Axle and Tongue Installation with Hydraulic Brakes
Below, you will find the products that make up the 1001243181 Axle and Tongue Installation with Hydraulic Brakes under "Components". The machines and quantities required for this installation item will be located in the tables below "quantities required".
Components
Quantities Required
| Component Item |
Component Description |
Quantity |
U/M |
| 2902349 | KIT,HYD BRAKE LINE | 1 | EA |
| 3820017 | RIVET,POP .156 | 2 | EA |
| 1560017 | CONDUIT, SPLIT POLY BLK | 2 | EA |
| 4751400 | WSHR FLT .25 .31 .73 .065 | 19 | EA |
| 2300006 | FLUID,BRAKE,DOT 3 | 0.063 | GL |
| 3890042 | ROPE/CABLE,PARKING BRAKE | 1 | EA |
| 0641838 | SCR CAP HH 5,.500-13X4.750 | 3 | EA |
| 4752200 | WSHR FLT .75 .81 2.00 .148 | 4 | EA |
| 3420592 | PIN, HAIR COTTER | 1 | EA |
| 1060799 | CABLE, LANYARD 11.50 LG | 1 | EA |
| 0642244 | SCR CAP HH 5 .750-10 X 5.500 | 2 | EA |
| 4751500 | WSHR FLT .31 .38 .88 .083 | 2 | EA |
| 0903108 | BRKT/LUG,PARK BRAKE MOUNT | 1 | EA |
| 0641412 | SCR CAP HH 5,.250-20X1.500 | 4 | EA |
| 4568986 | TUBE,TONGUE SURGE BRAKE 2" | 1 | EA |
| 1320060 | CLAMP, HOSE | 3 | EA |
| 3311805 | NUT HEX,.500-13 LOCK | 6 | EA |
| 0641514 | SCR CAP HH 5,.312-18X1.750 | 2 | EA |
| 0641836 | SCR CAP HH 5,.500-13X4.500 | 3 | EA |
| 1320061 | CLAMP, HOSE | 1 | EA |
| 4711800 | WSHR FLT .50 .53 1.06 .121 | 6 | EA |
| 1001243182 | HITCH,HYD BRAKE 2" COLLAR | 1 | EA |
| 0080291 | ADAPTER, TONGUE | 1 | EA |
| 4569097 | TUBE,3/16 HYD BRAKE 18FT | 1 | EA |
| 3311405 | NUT HEX,.250-20 LOCK | 7 | EA |
| 3312205 | NUT HEX,.750-10 LOCK | 2 | EA |
| 8580420 | NUT WELL | 4 | EA |
| 4711400 | WSHR FLT .25 .28 .63 .065 | 1 | EA |
| 1560016 | CONDUIT, SPLIT POLY BLK | 1 | EA |
| 3450304 | PIN COTTER .09 X 1.00 | 5 | EA |
| 3311505 | NUT HEX,.312-18 LOCK | 2 | EA |
| 0641438 | BOLTNC GR5,1/4-20X4.750 | 2 | EA |
| 70212 | CHAIN, SAFETY W/HOOK | 2 | EA |
| 0641406 | SCR CAP HH 5,.250-20X.750 | 5 | EA |
Single Level Where Used
Structured Inquiry
| Component Item |
Component Description |
| A3070918 | T500J |
| A3071100 | T500J |
| A3070887 | T500J |
| 0000307 | JLG MODEL T500J LIFT |
